Blue Line Advanced Temperature Controller

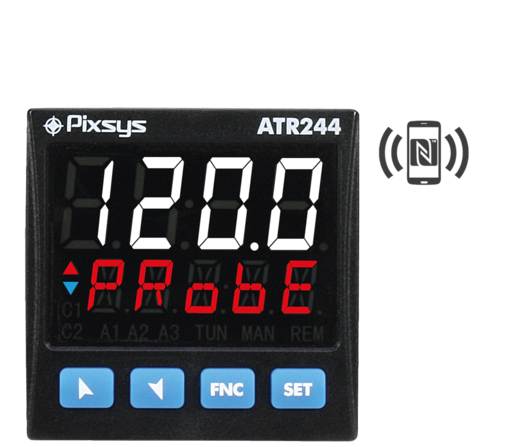

ATR244-12ABC Temperature Controller

Pixsys ATR244 Process and temperature controller sets the highest standards in a discreet single loop controller. It stands out with the bright 2 line display which ensures optimal visibility and increased level of information for the operator with new scrolling Help function.

Why it is so Unique:

User selectable Output :
Choose from; Relay, Logic, 0-10V, 4-20mA or Servo Valve Drive.

Universal Power Supply:
24-240VAC/DC no selection required:

Scrolling Help menu:
No manual? No problem! As you click on each parameter, a scrolling description appears in the lower display:

Contactless Smart Phone Configuration:

Program with Android App

Programming is possible by NFC/RFID technology with dedicated App MyPixsys for Android smartphones. Power is not required for this function, allowing quick set-up/updates on site. Set up files can be saved and emailed

So Many Benefits;

Contactless programming without need for power. Touch back of the phone on bezel of the controller to transfer the configuration parameters.
Clone parameters of one controller into another in seconds.
Need Support; we can set a controller up here send you the file via email/WhatsApp to your phone and you drop it straight into the controller.
Store multiple configurations as file names, for 100% accurate and quick recall of past applications.

Additional Functions also available as standard:
2 Set-point Switch
Programmable Ramp & Dwell
2 Programmable Timers in MM.SS or HH.MM stop start from I/O or threshold.
Retransmission of SP or PV if V/mA Not Used For Control

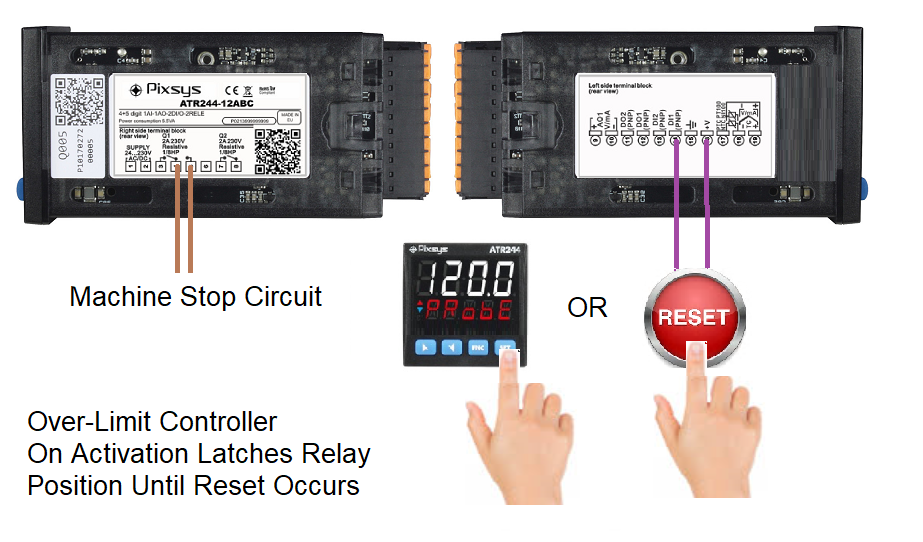

Manual Reset of Relay if Used For Over Temperature Control
Auto/Manual Drive

Availabile models include dual analogue input and dual analogue output for advanced applications such as cascade loops, remote setpoint input & output. So it is possible to achieve two separate heating/cooling PID control loops in the one instrument or to process mathematical operations between two input values. The outputs can be selected as command, multiple alarm modes, analogue retransmission. Serial communication is available via RS485 with Modbus RTU/Slave protocol.

Applications

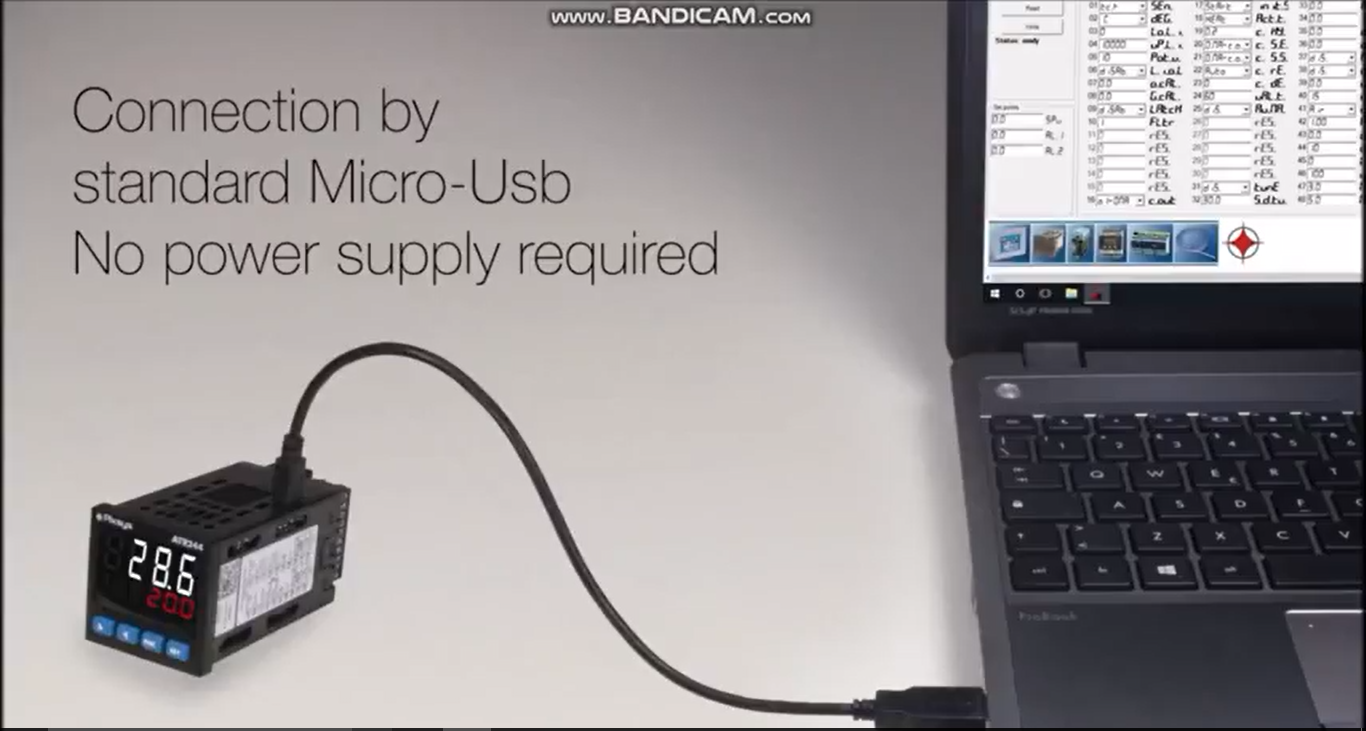

Program with Software

Programming is also possible by standard windows PC using free labsoftview utility & mini USB cable. Power is not required for this function

Model Selection

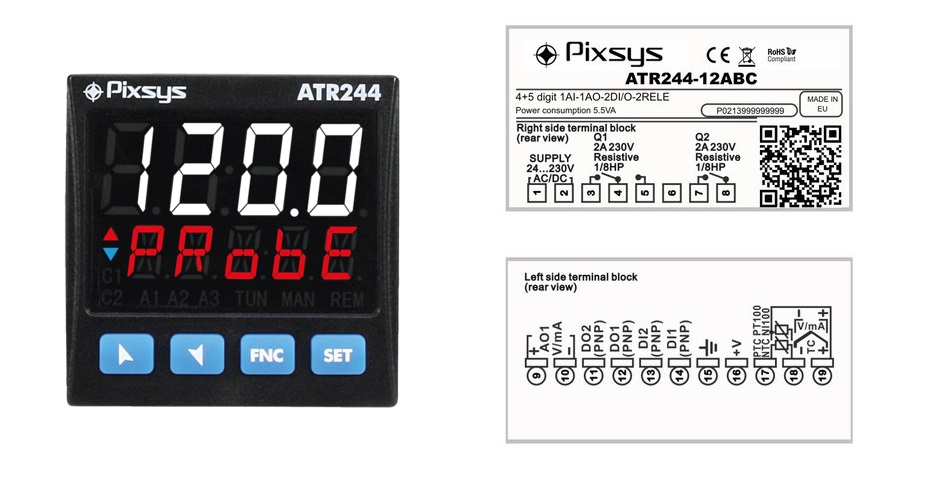

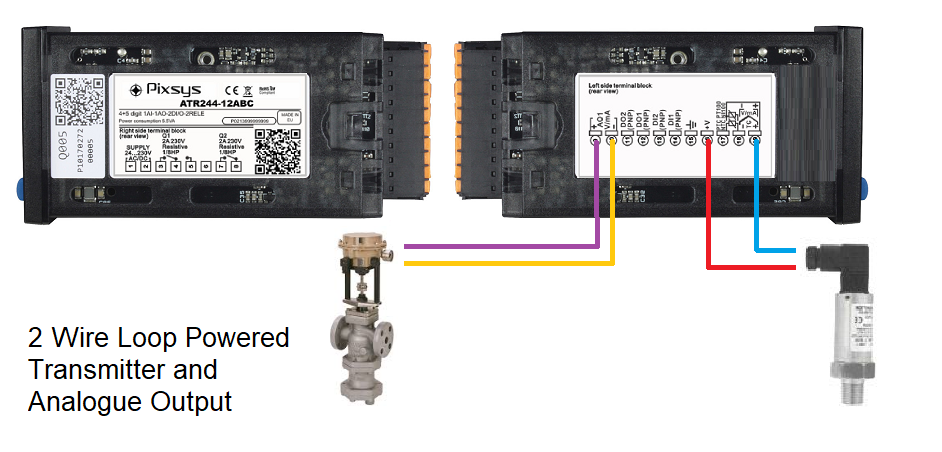

Model ATR244-12ABC features include wide range power supply 24-240 VAC/DC with 12VDC transmitter power

Universal input, J, N, R, S, T, K type thermocouple, mV, 0-10V, 4-20mA, potentiometer, NTC and PTC thermocouples.

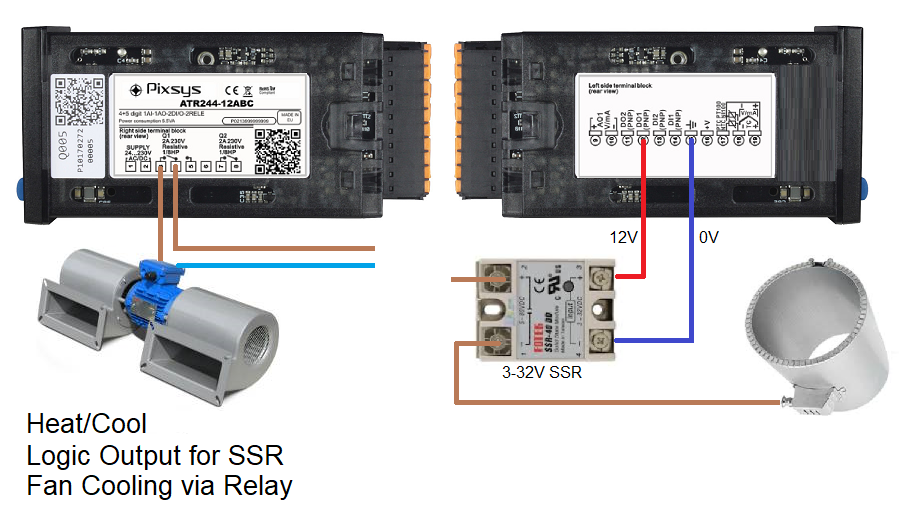

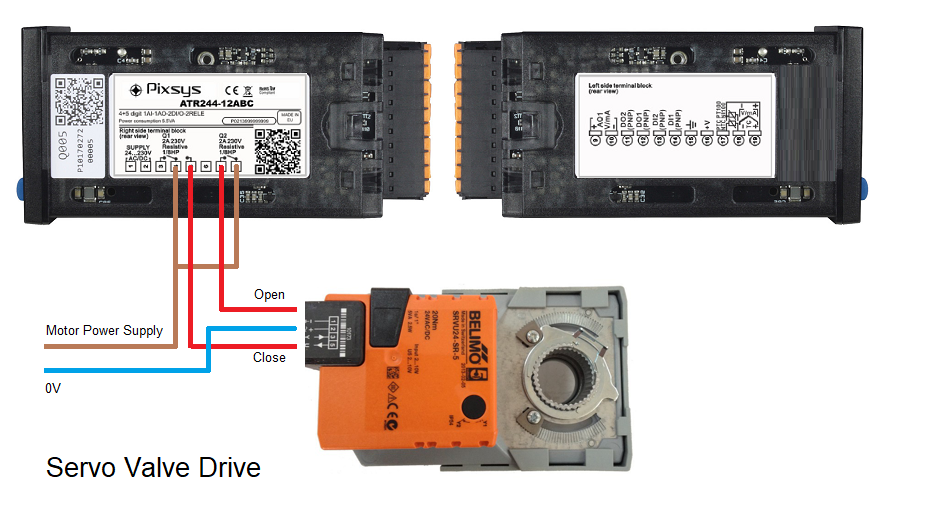

Universal outputs 0-10V, 4-20mA, relay, SSR & servo valve drive for modulating valves (using 2 relays) for control or re-transmission where applicable

There is a 3 segment program function for kiln applications with digital input for start, self tune & multiple alarm types with automatic or manual reset.

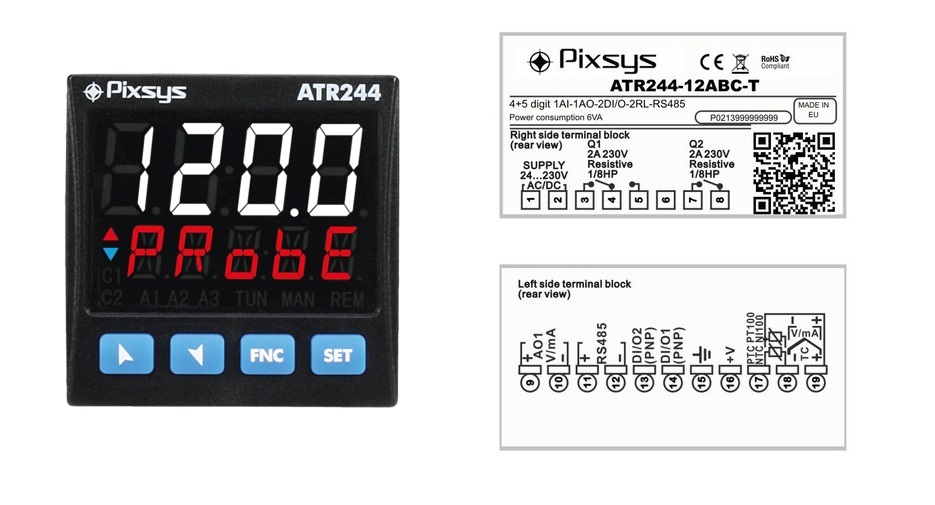

ATR244-12ABC-T has all the features of the ATR244-12ABC with additional Modbus RTU slave port which is provided in place of one of the digital inputs

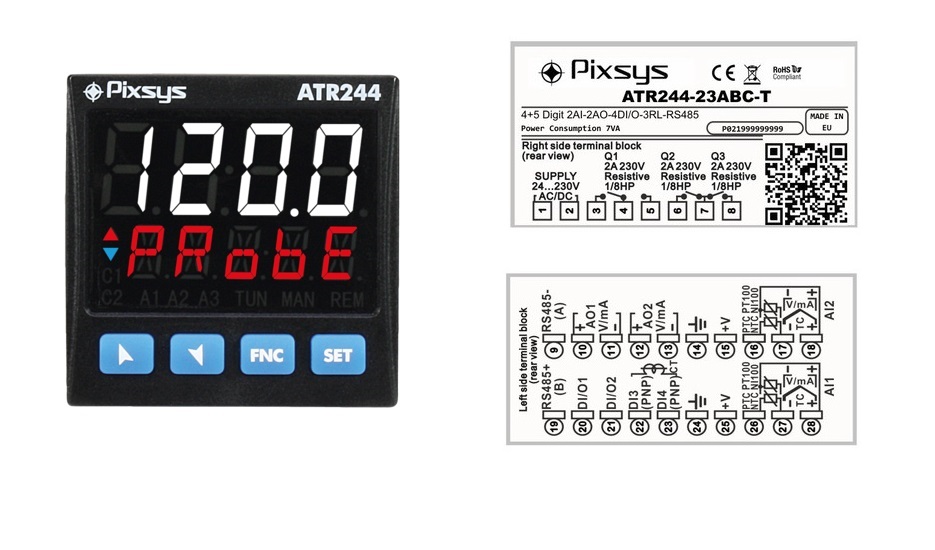

ATR244-23ABC-T also has Modbus RTU and an additional board which provides a second analogue input and a second analogue output. A third relay output is available.

Multiple functions can be acheived with both the input and output, such as remote setpoint input, setpoint or PV retransmission, maths functions between input 1 and input 2 or independant dual loop control in one instrument

SPECIFICATION

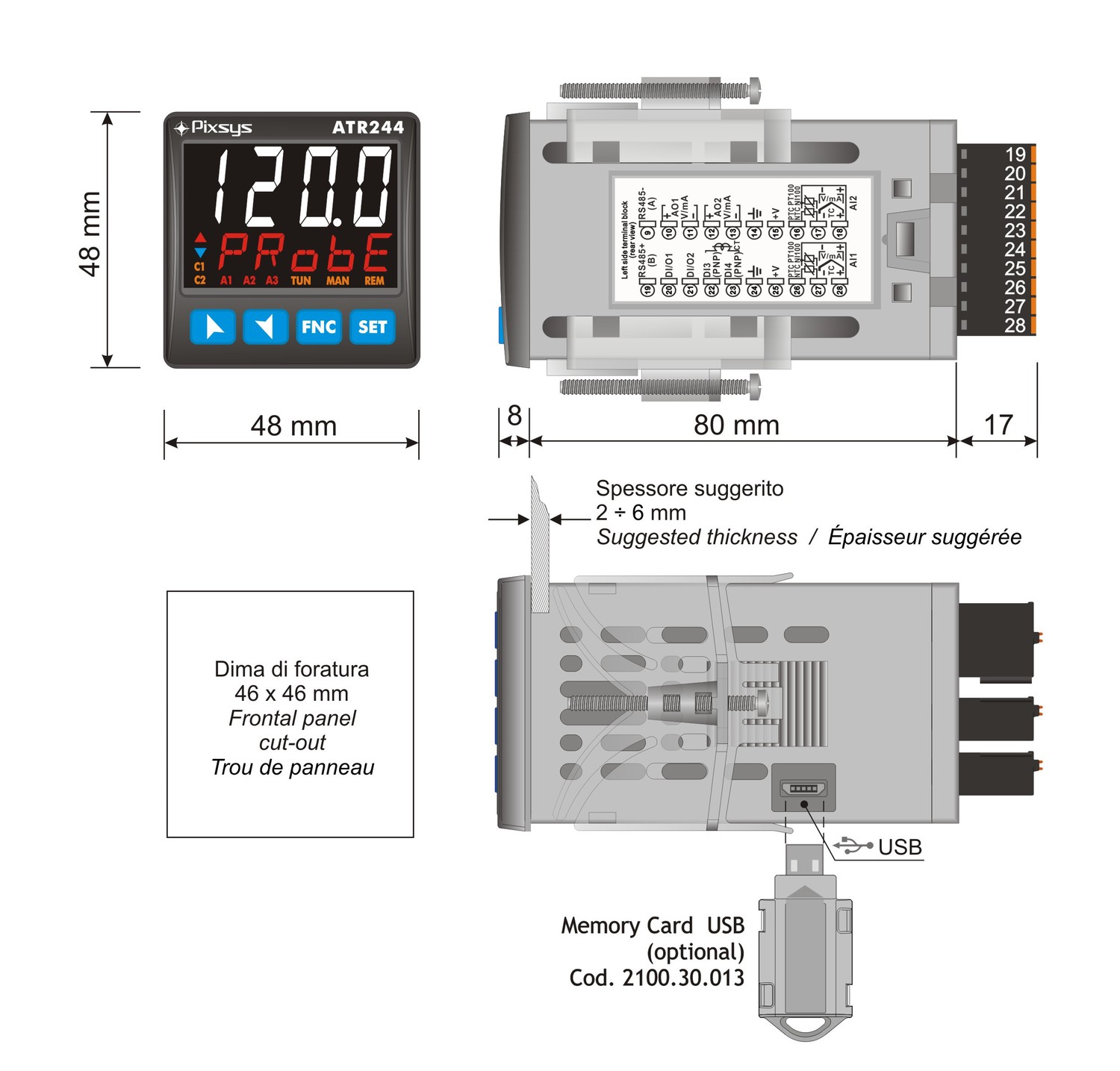

48 x 48 (front panel) x 105 mm

Power supply 24-230 V AC / DC +-15% 50/60 Hz - galvanical isolation 2,5KV

Consumption 8 W

Display 4 digits 0.5" white + 4 digits 0.3" red

Operating conditions Temperature 0-45 degC, humidity 35-95 RH%

Material Box: PC UL94V2 self-extinguishing, front panel: PC UL94V2

Weight Approx. 185 g

Sealing IP65 (front panel) IP20 (box and terminal bloks)

Quick set-up options Memory Card, software LABSOFTVIEW, or EASY-UP, APP / NFC Programming via APP MyPixsys for Android smartphones

Inputs 1 or 2 - Configurable

Res. 16 bit, selectable Programmable up to 2,1 ms (frequency up to 470 Hz)

2/4 digital inputs Setpoint change, Hold, Run, Tuning launch, Start / Stop, Lock configuration

Outputs 2/3 Relay 5 A - 250 V AC resistive change

2 SSR 12 / 24 V DC - 30 mA max

1/2 analogue Selection 4-20 mA (40000 points +-0,2% F.S.) or 0-10 V DC (40000 points +- 0,2% F.S.) for command or retransmission PV / SPV

Serial communication RS485 Modbus RTU - Slave (4800-115200 baud code-T)
