Analogue and Digital Modbus RTU Converter
MCM260X-9AD Modbus CANopen Slave

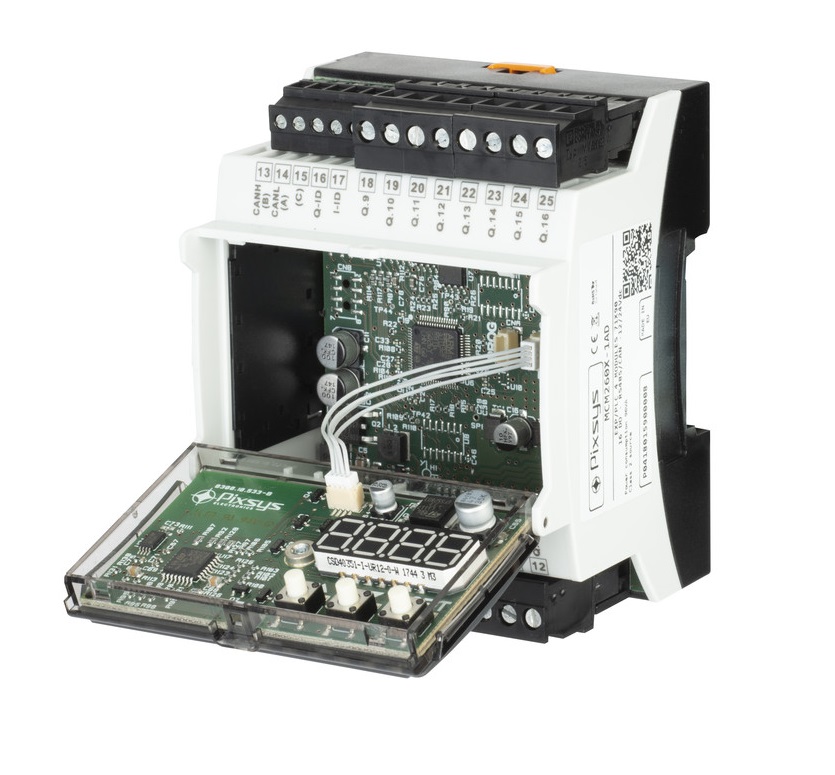

MCM260X-9AD is universal analogue signal and 16 digital I/O DIN rail expansion with Modbus RTU slave protocol. It has 4 universal 16-bit analogue inputs, which include thermocouples, RTD's, NTC thermistors, 0-10V, 4-20mA and resistance ranges. There are 2 analogue outputs programmable for 0-10V or 4-20mA. 8 digital PNP inputs, high speed counter unidirectional or quadrature with marker pulse and 8 digital PNP outputs max 700mA resistive load. Communication is via Modbus RTU with programmable Baud, format and response delay.
Communication parameters can be set using smart phone via NFC and free Pixsys APP or via via scrolling menu on inside of hinged panel.
MCM260X-9AD Modbus Converter Specification
Power supply: 12..24Vdc +/-15%Analogue inputs 4 x (Res. 16 bit) selectable: TC type K,S,R,J,T,E,N,B (automatic compensation of the cold junction 0..50 °C, ±0,2% F.S. ±1 Digit F.S.), thermoresistances PT100, PT500, PT1000, Ni100, PTC1K, NTC10K, (β 3435K), process signals 0..10 V (54000 points), 0/4..20mA (40000 points), 0..60 mV (16000 points), 0..10V, 0..5V, potentiometer 0..150 KΩ (50000 points)
Analogue outputs: 2 (Res 16 bit) selectable: 4..20 mA or 0..10 Vdc
Digital inputs: 8, 4 Enc./count. 32 bit - max. 80KHz
Digital outputs: 8 (700 mA max. 3A Tot.)
Galvanic isolation: From supply to analogue input / output to serial Bus
Communications: Modbus RTU slave protocol 2400 - 115200 Baud
Functions supported(code 0x03, 0x04, SINGLE WORD WRITING (code 0x06). MULTIPLE WORD WRITING (max 50 word), (code 0x10)

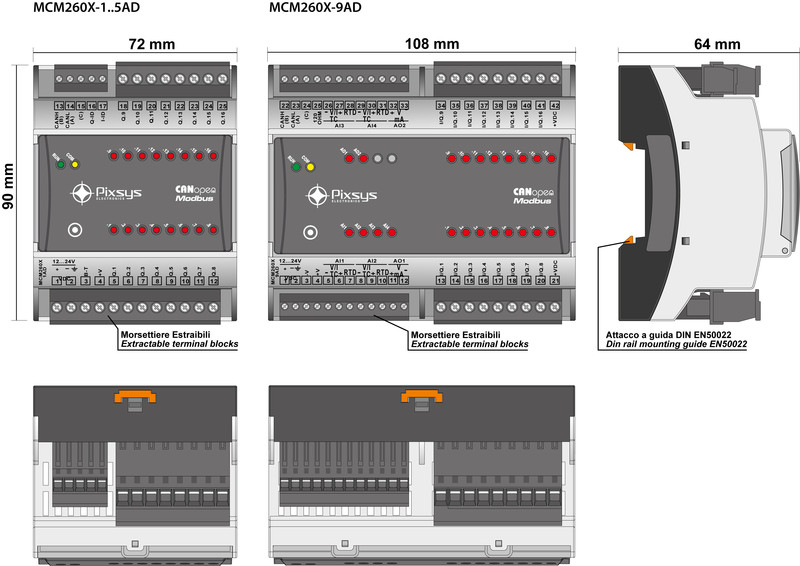

Mounting 35 mm DIN rail guide
Protection degree IP20
Operating Temperature 0..50 DegC 0..95 RH
