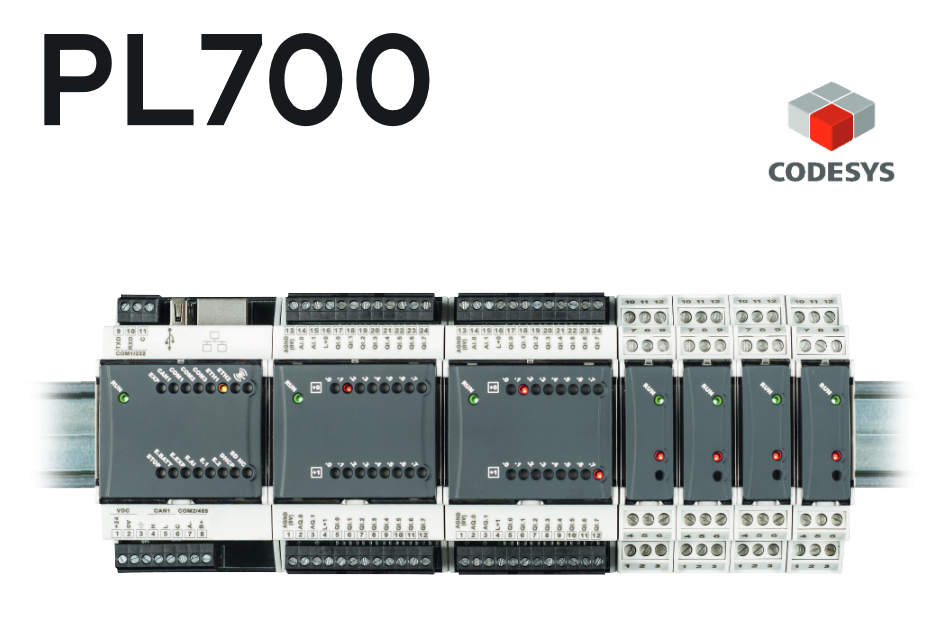

PL700 PLC CPU
PL700 PLC CPU integrating Codesys Control SL v.3.5 runtime, programmable by CODESYS development environment. This CPU supports following CODESYS fieldbuses: CANopen Manager (Master), EtherCAT Master, EtherNet/IP Adapter (Slave), Modbus TCP Master / Slave, Modbus Serial Master, PROFINET Device (Slave).

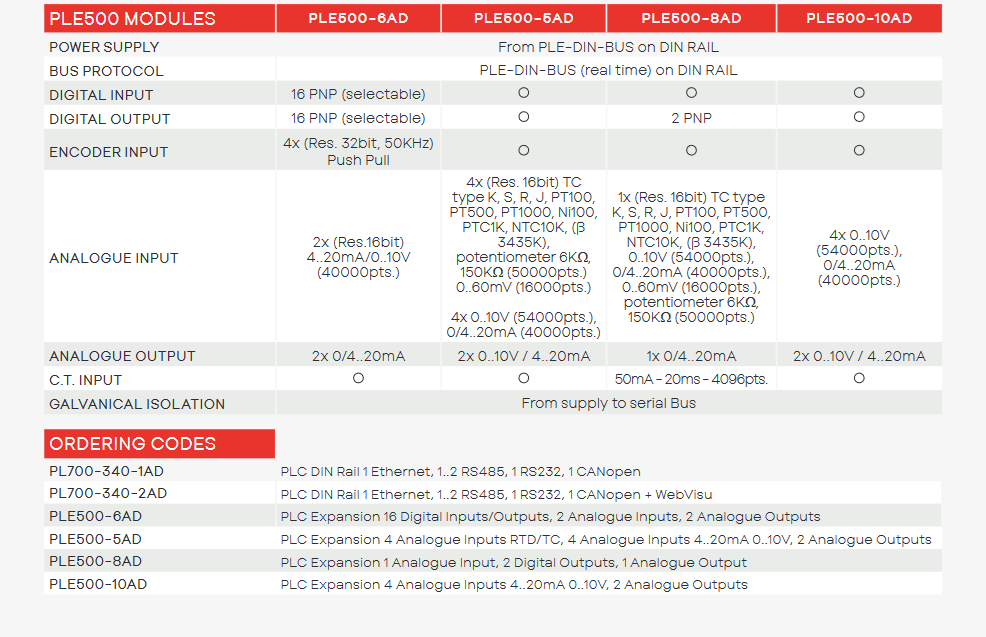

Acquisition of local I/Os is possible via integrated fieldbus PLE-DIN-BUS for the Pixsys modules PLE500 and via RS485/ModbusRTU or CANopen for Pixsys remote I/O Modules MCM260X
Also see MCM260X Din rail mount expansion modules for Pixsys and third party devices with digital I/O, universal analogue inputs and 0-10V 4-20mA analogue outputs. All modules utilize both Can Open and Modbus RTU protocol, user selectable input types and communication settings. 12-24VAC/DC supply.
