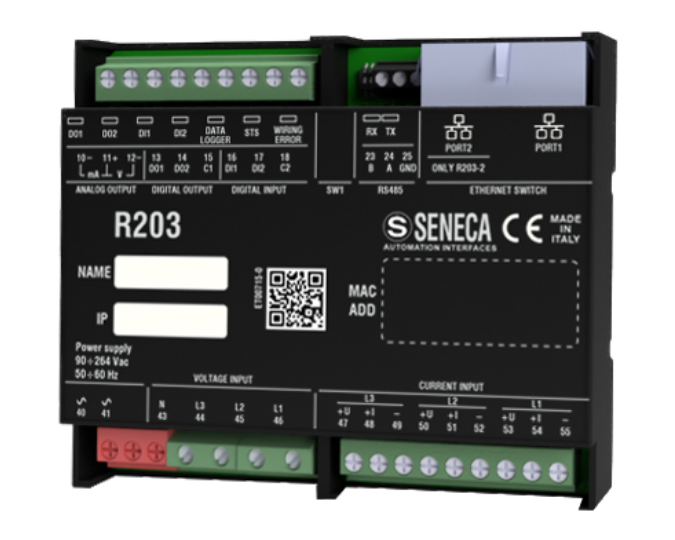

R203 Power Meter
Power Meter with Ethernet - Profinet - OPC UA
R203 Ethernet Power Meter Installation Manual

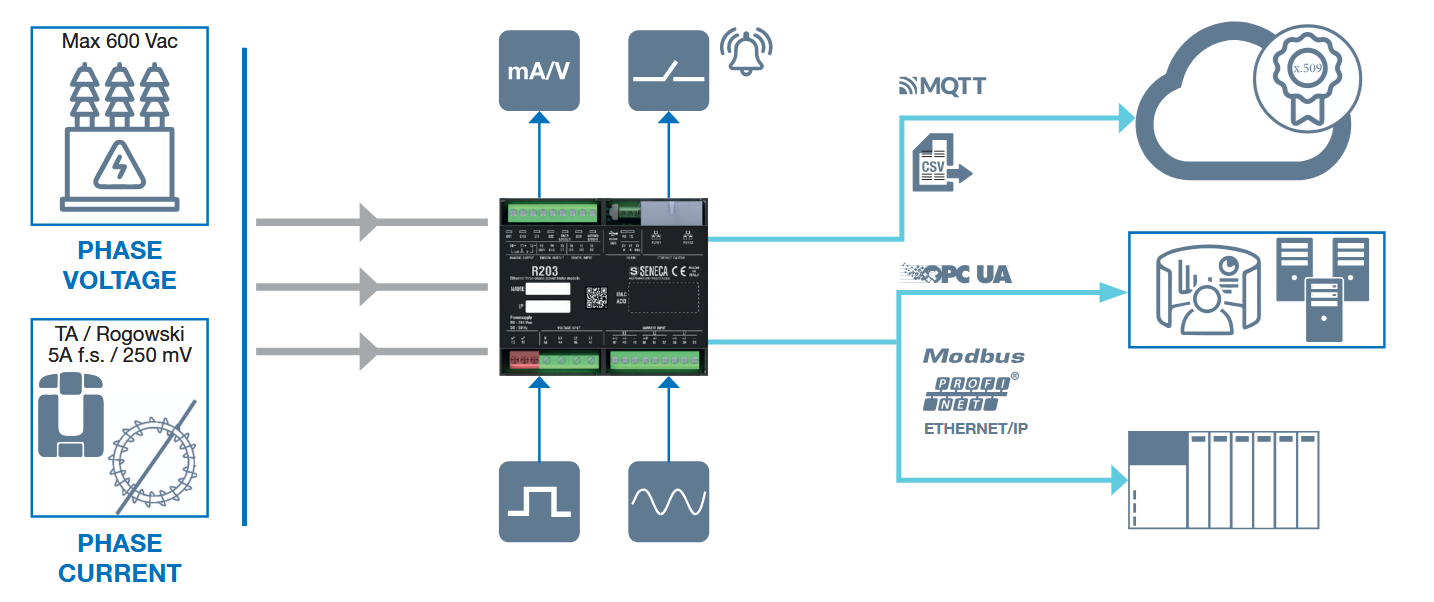

R203 is a versatile energy power meter with flexible input, capable of handling a wide range of current measurement inputs. It can accept current transformer inputs, direct voltages, and Rogowski sensors with voltage signals up to 333 mV. R203 can be used for multiple applications, including single-phase and three-phase 3/4-wire types, and is compatible with Modbus RTU, Modbus TCP, and versions available with OPC UA and Profinet protocol connectivity.
Available with a 24 VAC/DC or 230 VAC power supply, it features a compact design with a depth of only 32 mm, allowing a daisy-chain connection with automatic fault-bypass protection. The power meter can provide voltage (0..10Vdc) and current (0/4..20mA) output signals. It also offers advanced functionality for measuring harmonics up to the 55th order for a better understanding of power quality.
Thanks to their compatibility with Modbus RTU/TCP-IP, Profinet IO, Ethernet/IP, and OPC UA protocols, R Series energy power meters integrate seamlessly into any control infrastructure, ensuring maximum flexibility across a wide range of industrial applications
UNIVERSAL INPUT R203 and R204 are three-phase power meters enabling universal input signals with adjustable scales up to 600 Vac (voltage), 5A(CT with current output), 250 mV (CT with voltage output or Rogowski sensors)
DATALOGGER ENERGY COUNTER R203-(X)With support for MQTT, HTTP, and FTP protocols for data transmission, the R203 and R204 operate as data loggers (up to 30 variables per tag and approximately 55,296 samples) and event loggers with recording of up to 32,768 samples.
ENERGY COUNTER The analyzers are equipped with a digital pulse output and retentive memory for accounting for active, reactive, and apparent energy. Both digital inputs have a filter and a 32-bit incremental counter
DATA TRANSMISSION VIA MQTT, FTP, HTTP(s) The values acquired by the data logger can be sent directly to the cloud using the MQTT(s), Http(s), or FTP protocols. Transmission via MQTT also includes timestamps and thresholds.

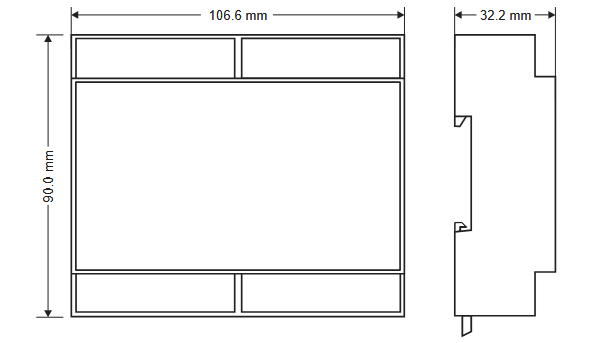

DIMMENSIONS
TECHNICAL DATA
Power Supply 10..30 Vdc (models R203-1-L, R203-2-L) 90..264 Vac (50-60 Hz) (models R203-1-H, R203-2-H) Max Power Consumption 2.8 W Isolation 3,500 Vac (to/from power circuits) 1,500 Vac (other circuits) Status Indicators Power supply, digital channels, RS485 communication, data logger status, wiring error, Ethernet ports activity Installation category 600 V CAT III Programming via Web Server. Through the SDD software, it is possible to locate the device and easily access it. Precision class 0.2% for voltage/current; 0.5% for power Flash memory 8 MB Network Features Dual Daisy Chain Ethernet Connection LAN fault bypass (the active connection between the two Ethernet ports of the device in case of power failure) Max 32 Peer-to-Peer Rules (I/O Mirror) - No Master required ModBUS Passthrough (TCP-IP to RS485) Identification and configuration IP, MAC, and Firmware via SDD tool Energy Features Energy metering (on output digital output) No. 2 incremental counters 32 bits on digital inputs @5kHz Type of insertion / Connection mode Single-phase, 3-phase 3-wire, 3-phase 4-wire, CT, CT with mV output, Rogowski transducers, Aron Frontal Protection degree IP20 Mounting DIN RAIL 35 mm guide Connections Screw terminals Operating temperature -25..+65 deg C Dimensions 107x90x32 mm Weight 170 g Case PC/ABS self-extinguishing UL94-V0, black color Voltage/current inputs Phase voltage measurement Voltage: up to 600 Vac, freq. 45-65 Hz VT with output up to 600 Vac concerning neutral Phase current measurement AT with output 1-5 A f.s. AT with output mV or Rogowski up to 250 mV Integrated I/Os Digital inputs Nr.2 activatable with voltage from 12 to 24V and 2 digital counters @ 50 Hz Digital outputs Nr.2 capacity Imax = 50 mA Vmax = 28V Analog outputs Nr.1 settable: in VOLTAGE 0..10 Vdc, min load resistance 2kohm or in CURRENT 0..20, 4..20 mA, max load resistance 500 Ohm Transmission error: 0,1 % of max range Thermal drift: 100 ppm/K
COMMUNICATION
Serial Interfaces Nr.1 RS485 port Protocol ModBUS RTU Distance Up to 1,200 m Connectivity Max 128 nodes

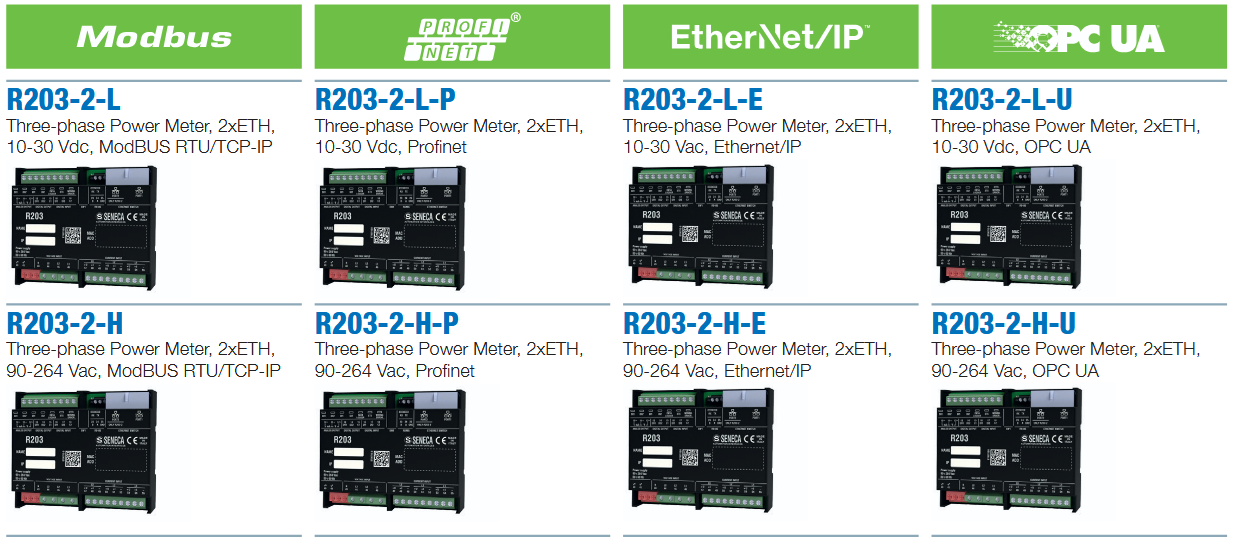

Ethernet Ports Nr.1 Ethernet Port 100 Mbps (R203-1-x models) Nr.2 Ethernet Ports 100 Mbps (R203-2-x models) Connections Ethernet switch with Daisy Chain protection Protocol R203-2-X ModBUS TCP-IP, MQTT, HTTP POST, P2P, FTP R203-2-X-(U) OPC UA server R203-2-X-(P) Profinet IO R203-2-X-(E) Ethernet/IP
Rogowski Coils

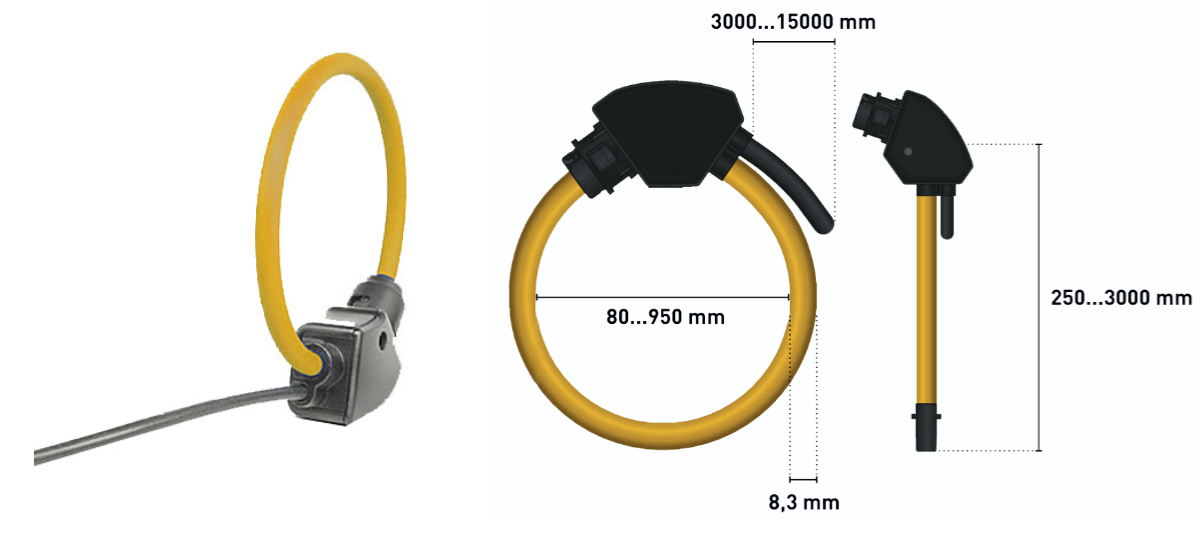

RC150 Rogowski coils are a flexible current transducer based on Rogowski principle. RC150 coils are available in different sizes and they can be used in applications, where traditional transducers are unable to be installed due to size and/or weight. The absence of magnetic core grants a wide frequency response.
RC150-025-100-3M
Rogowski Coil L=25 cm, Dia int. 8 cm, 100mV/1KA-50Hz and cable L=3mt
RC150-025-100-5M
Rogowski Coil L=25 cm, Dia int. 8 cm, 100mV/1KA-50Hz and cable L=5mt
RC150-035-100-3M
Rogowski Coil L=35 cm, Dia int. 11 cm, 100mV/1KA-50Hz and cable L=3mt
RC150-040-100-3M
Rogowski Coil L=40 cm, Dia int. 12 cm, 100mV/1KA-50Hz and cable L=3mt
RC150-040-100-5M
Rogowski Coil L=40 cm, Dia int. 12 cm, 100mV/1KA-50Hz and cable L=5mt
RC150-060-100-3M
Rogowski Coil L=60 cm, Dia int. 19 cm, 100mV/1KA-50Hz and cable L=3mt
RC150-060-100-5M
Rogowski Coil L=60 cm, Dia int. 19 cm, 100mV/1KA-50Hz and cable L=5mt
