DRR245 Controller - Signal Isolator -
Signal Converter



Ordering code


Metalworking furnaces
Heating elements control
Refrigeration
Footwear machinery
Plastics extrusion, injection moulding
Dryers
Load cells control
Plastics machinery
Motorised valves control
Signal converter
Woodworking machinery
Pharmaceutical industry
Cold stores
Remote control via RS485
Amperometric control

Description

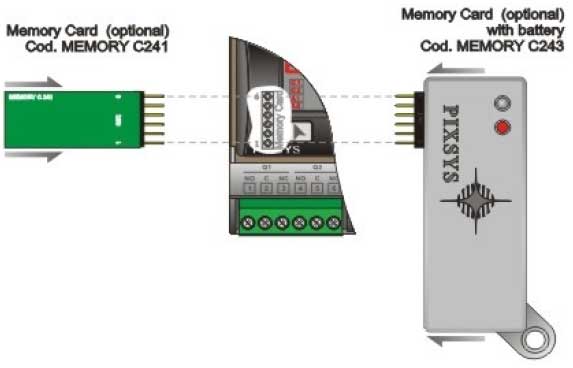

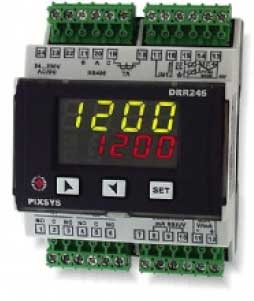

DRR 245 is the DIN rail mounted multifunction controller. One analog input configurable by parameter for up to 18 different sensors/signals. Three outputs configurable by parameter: two relays (also as Open/Close logic for motorised valves control), logic output for SSR or 4...20mA /0?10V signal (both for command or re-scalable retransmission of process/setpoint). The analog output is galvanic isolated from power supply and from anaolog input. The switching power supply with extended range 24?230Vac/Vdc does not require any jumpers setting. Control modes: On/Off, PID + Autotuning, Heating/Cooling PID with neutral zone. Software features include Tuning start and selection of setpoints by digital input, optional manual reset of output by frontal keyboard ("Limit controller"), Latch-on function for sensors calibration (including load cells), a programmable cycle/profile of 3 steps . Serial communication RS485-ModbusRTU and load monitoring function (Loop Break Alarm) with amperometric transformer TA. Optional Memory Card to copy all parameters, available also with internal battery therefore not requiring to power up the unit. Software application LABSOFTVIEW for Windows enables setting and monitoring of parameters on PC. CE and UL-CSA approved.

Technical data

BOX: standard DIN 43880
DIN rail EN 50022
SUPPLY: 24…230 Vac/dc +/-15%, 50/60Hz
POWER CONSUMPTION: 3W
DISPLAY: dual 4 digits, 8 red LEDs, decimal point
OPERATING CONDITIONS: 0-45°C, 35..95rH%
INPUTS: 1 configurable for TC K, J, S, R, PT100 (2
ranges), NI100, PT1000, PT500, PTC1K, NTC10K
0…10V, 0/4…20mA, 0…40mV
Potentiometers <=6KK, <=150KK, TA 50mA
OUTPUTS: 2 relays 5A resistive + 1 logic SSR 12V-30mA
/ 4..20mA / 0...10Volt for control or retransmission (4000
points accuracy), galvanic isolated
RS485 Modbus RTU (57600baud max)
Input TA 50mA for Loop Break Alarm
DIGITAL INPUT: Tuning Start, Setpoint change, selection
Man/Auto, Hold function, Start/Stop pre-programmed
cycle
CONTROL MODES: ON/OFF, P, PI, PID Autotuning
ACCURACY: 0.5%±1digit for TC/RTD; 0.2%±1digit for
V/mA
SAMPLING TIME: selectable (min 15ms)
SEALING: IP20 Terminal blocks
CONFIGURATION: Parameters protected by password,
Memory card with battery for serial productions, software
LabSoftView
CERTIFICATIONS: CE, CSA UL*

Ordering Code

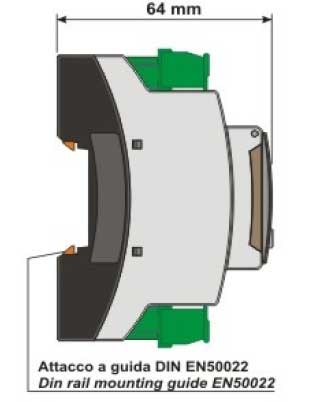

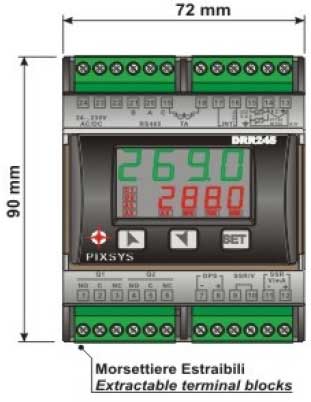

Installation

File : Disegno -DRR 245.cdr
Regolatore Modello : DRR245-xx

Signal Converter,Signal Isolator,Signal Controller

MODEL

INPUT

OUTPUT

POWER SUPPLY

DRR-245-21ABC-T

Configurable/ Selectable Relays + SSRr/4... 20mA/0.. 10v +Rs485 24...230vac/dc +/-15%50/60 Hz
