DST-400 Pressure Transmitter

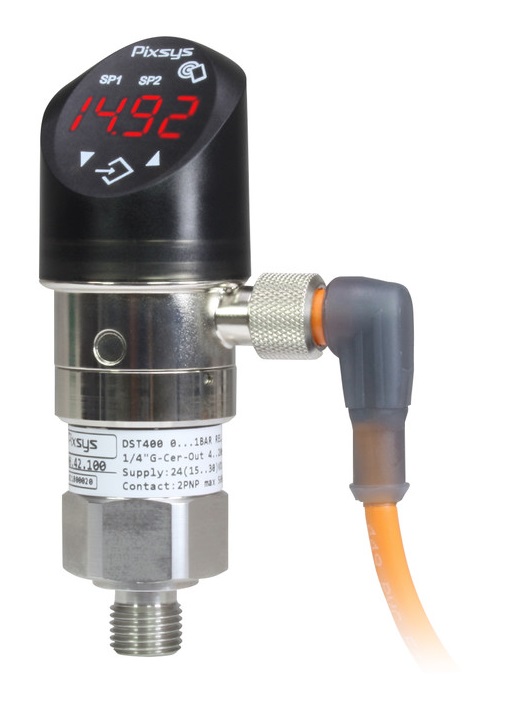

DST-400 Programmable Pressure Transmitter
2000.42.1xx Pressure transmitter with LED display
Pixsys DST-400 is an industrial pressure transmitter and dual set point pressure switch with built in LED display, 2 transistor outputs and both 0-10V and 4-20mA ouputs. The DST-400 Pressure Transmitter stands out due to RFID contactless programming using the free smartphone APP and LED display head rotation to allow viewing during different mounting orientations, scalability of measuring range of 50% of the nominal scale and integrated datalogger with programmable sample time

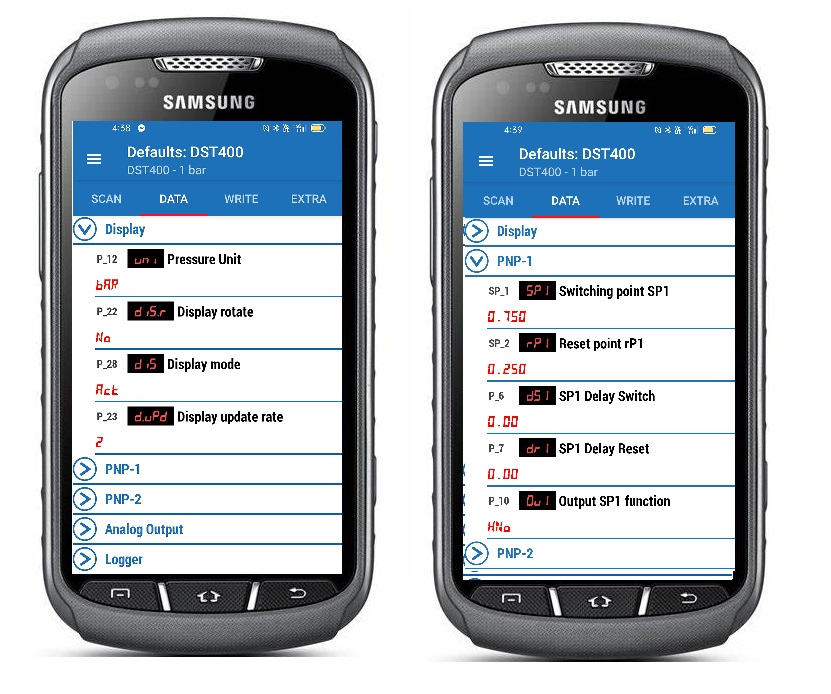

2000.42.100 0..1 Bar Full Scale 2000.42.104 0..10 Bar Full Scale 2000.42.107 0..40 Bar Full Scale 2000.42.108 0..100 Bar Full Scale 2000.42.111 0..400 Bar Full ScaleDST400 Smart Phone Configuration
The Pixsys APP on Google Play or Itunes for IOS devices is free download which allows fast contactless configuration and quick, simple file storage and file sharing

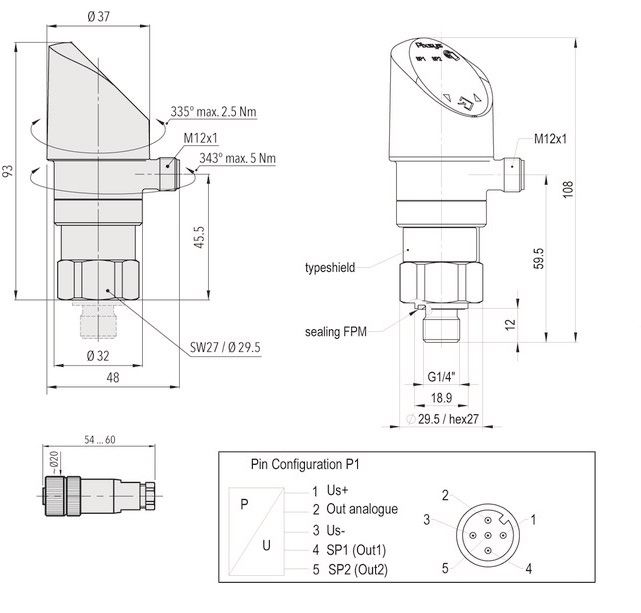

DS400 Pressure Transmitter Dimmensions
DST400 Pressure Transmitter Specification
Power supply 15..30 VDC Power consumptionMax 0,6 W Operating conditionsTemperature -25..+85 degC, humidity 35..95 RH% Material Sensor housing: galvanised steel; display housing: polycarbonate Weight Approx. 189 g SealingIP67 - FPM, NBR, EPDM Measuring range 2000.42.100 0..1 Bar Full Scale, Overpressure limit 2 Bar 2000.42.104 0..10 Bar Full Scale, Overpressure limit 30 Bar 2000.42.107 0..40 Bar Full Scale, Overpressure limit 120 Bar 2000.42.108 0..100 Bar Full Scale, Overpressure limit 300 Bar 2000.42.111 0..400 Bar Full Scale, Overpressure limit 1000 Bar All adjustable 50..100% F.S. Sensor type Thick film on Ceramic (0..1/100 Bar) - Thin film on steel (> 100 Bar) Pressure connection1/4" GAS (Multiple adapters available to match different process connections for various industries) Electric connection 5 Pole Male M12x1 Housing orientation Display 335 degree rotatable - Electrical connection 343 degree rotatable Sensor working temperature- 25..+ 85 DegC Accuracy(@25”ĘC ”¾ 0,5% F.S.) Software features Digital output N.2 outputs PNP Analogue output Programmable by parameter as mA or V Display 4 Digit 1..3 decimal points Pressure unit Selectable Bar, Psi, MPa, kPa, m WC, DataloggerRing buffer: 3518 data points - Sampling time: 0.1 ... 999.9 s, Off (0) Quick set-up optionsProgramming via MyPixsys APP for Android smartphones (NFC)Back to top
