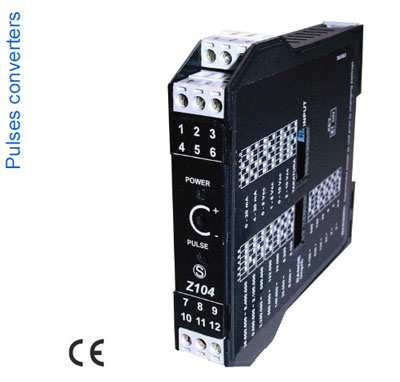

Z-LINE Z-104 DC Current / Voltage Frequency converter
|
 |
| INPUT: current 0..20, 4 . 20 mA voltage 0..5, 1..5, 0..10, 2..10 Vdc |
| OUTPUT: on npn open-collector 30 Vdc 300 mA; reed relay 30 Vdc/sc 100 mA |
| ACCURACY: 0,2% |
| Galvanic isolation @ 3-way |
| Screw-fit terminals removable |
| Din rail mounting |
| Power supply: 19..40 Vdc, 19..28 Vac |
|
|
|
| TECHNICAL SPECIFICATIONS |
Z104 ? DC Current Voltage Frequency converter
|
|
|
ELECTRICAL
|
| Power supply |
10..40 Vdc (9..30 opt), 19..28 Vac 50..60Hz |
| Power consumption |
Max 2,5 W |
| Galvanic Isolation |
Power supply // input // output at 1500 Vac |
| Protections |
Output // supply against impulse overvoltage 400W /ms. |
| Status indicators |
power ON on front panel
relay pick-up indicator on front panel |
| Installation class |
II |
| Pollution rating |
2 |
| IP Protection |
IP 20 |
|
THERMOMECHANICS
|
| Operating temperature |
0..+55 °C |
| Humidity |
30..90% a +40°C (non condensing) |
| Dimensions |
17.5 x 100 x 112 mm ( w x h x d ) |
| Weight |
150 g |
| Connections |
Screw-fit removable terminals for wires up to 2.5 mm2 |
| Mounting |
35 mm DIN 46277 |
|
DIMENSIONS
|
|
|
|
SIGNALS AND MEASUREMENT
|
| Channels |
N.1 |
| Inputs |
Current: 0 . 20 mA or 4 . 20 mA, both active and passive
connection (100 ohm)
Active connection : loop supplyvoltage approx. 15 Vdc
Voltage: 0 . 5 Vdc, 1 . 5 Vdc, 0 . 10 Vdc and 2 . 10 Vdc,
(1 Mohm) |
| Outputs |
Npn open-collector transistor 30 Vdc 300 mA
Reed-relay 30 Vdc-sc 100 mA
Settable in the range 1 pulse every 2 hours to 10 KHz |
| Accuracy |
Setting error: 0,2%
Temperature coefficient: 0,02% /°C
Linearity error: 0,05% |
|
CONFIGURATION AND STANDARDS
|
| DIP Switch |
-Input signal setup
-Output signal setup (using a common digital tester) |
| Standard |
EN50081-2 (electromagnetic emissions, industrial
environment)
EN50082-2 (electromagnetic immunity, industrial
environment)
EN61010-1 (safety) |
|
THERMOMECHANIC DATA
|
| OperatingTemperature |
-10..+60 C° |
| Storage Temperature |
-20..+85 C° |
| Umidity |
min 30% max 90% not condensing |
| Case |
PPO autoextinguish by DIN 43700 |
| Front Protection |
IP65 |
| Terminals |
Extraction, step 5 |
| Dimensions |
96x48x98 mm |
| Drill Gauge Dimensions |
91x45 mm |
| Weight |
200 g |
|
|
|

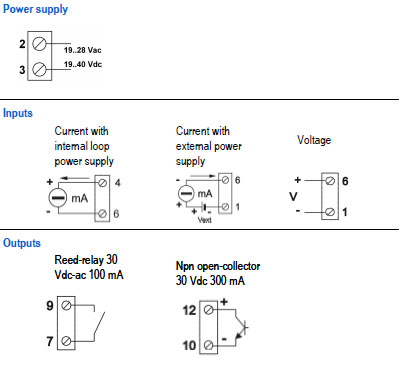

ELECTRICAL CONNECTIONS
|
|
|
|
|
|
|
|
