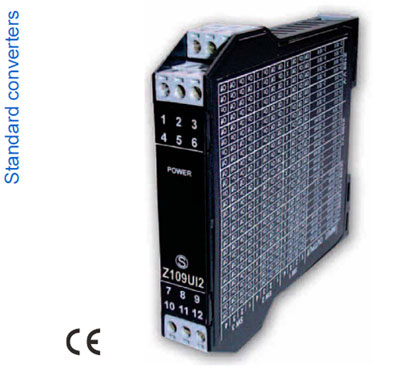

Z-LINE Z109UI2 DC Current / Voltage Converter
|
 |
| INPUT: N.1 Ch. current bipolar selectable up to 20 mA (resolution 1μA) or volta ge from 100mV up to 20V |
| OUTPUT: N.1 Ch. current 0/4..20 mA or voltage 0/2..10 Vdc |
| Response time: 35ms |
| Power supply: 9..40 Vdc, 19..28 Vac |
|
|
|
S311 AK
Digital display, mA / V input
|
| TECHNICAL DATA |
Z109UI2 – DC Current / Voltage Converter
|
 |
ORDER CODE
|
| Z109UI2 DC Current / Voltage Converter |
|
|
GENERAL FEATURES
|
| Power supply |
9÷40Vdc, 19÷28 Vac |
Design |
Terminal housing for mounting on 35 mm DIN 46277 |
| Channels |
N.1 |
DIP Switch |
- Inputs signal setup - Output signal setup |
| Accuracy |
0,1% |
Enclosure |
"V0" self-extinguishing glass filled nylon case |
| Rejection |
50 – 60 Hz |
Dimensions |
17,5 x 100 x 112 mm (w x h x d) |
| Response time |
35 ms |
Weight |
140 g |
| Galvanic Isolation |
Power supply // input // output at 1500 Vac, digital |
Operating temperature |
-20..60 °C |
| Resolution |
11 bit |
Connections |
Plug-in screw clamp terminal blocks, wires up to 2.5 mm2 |
| Power consumption |
2,5 W |
IP Protection |
IP 20 |
| Protections |
Surges: 400W/ms. Loop supply short-circuit protected |
Standards |
EN50081-2, EN50082-2, EN61010-1 |
| Protection for inputs |
Except current: 60V continuous; current 200mA continuous |
Approval |
CE |
| Humidity |
30..90% a +40°C (not condensing) |
|
|
|
|

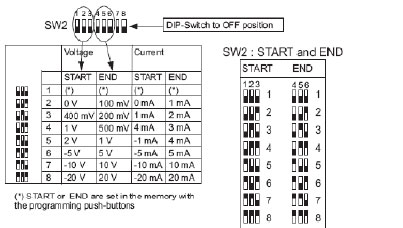

DIP SWITCH CONFIGURATION
|
|
|
|
|

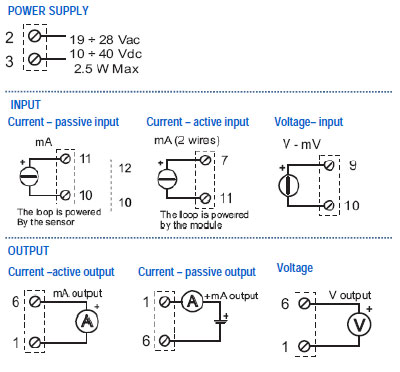

CONNECTIONS
|
|
|
|

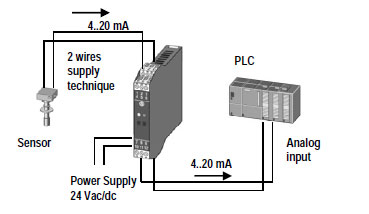

APPLICATION CASE
|
|
|
|
|
