S312A Panel Meter 4 relay outputs

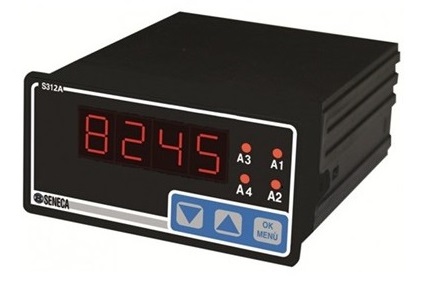

Digital Panel Meter with 4 Relay Outputs
S312A Modbus Programmable panel meter
S312A is a programmable digital panel meter for measurement of d.c. voltage or d.c. current, resistance, temperature through Pt100 resistance sensors and J, K, R, S, T, N thermocouples.
An IP65 4 LED 14mm digit display with 3 button tactile keypad.
Four 5 A/250VAC relay outputs, Modbus RTU and isolated analogue output 0-10V or 4-20mA are standard features in this device.
Parameters are programmable by frontal keypad or RS485 using free EASY software:
S312A Panel Meter Operator guide
Applications

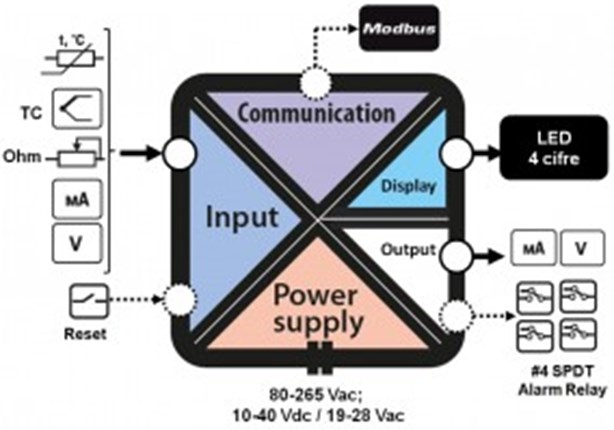

SPECIFICATION
ORDER CODE : S312A
DESCRIPTION: Analog Indicator 4-Digits Display with 4 relay outputs
DISPLAY: 4 digit LED
ANALOG INPUT: Nr1-CH voltage (0..+10 V), current (0..20 mA), thermocouple (J,K,R,S,T,B,E,N), Pt100 2,3,4 wire (-150..+650°C), potentiometer(1..100KOhm)
ANALOG OUTPUT: Nr1-CH (0..10 V, 0..20 mA) [retransmission]
DIGITAL INPUT: Nr1-CH isolated (10-30 V) [reset]
DIGITAL OUTPUT: Nr 4-CH relay , 5 A / 250 Vac [alarm]
COMMUNICATION: RS485 interface, ModBUS RTU
SETTINGS: Front keys, Jumper, PC software
PRODUCT CODE S312A-4-H-4R
GROSS WEIGHT kg 0,26
ORIGIN IT
