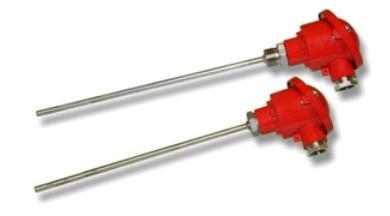

General Purpose PT100 in various lengths Max 250 degC
2000.00.129 PT100 Max 500 degC Temperature Sensor 100mm x 6mm with 1/2 inch parallel thread
2000.00.046 PT100 Max 500 degC Temperature Sensor 200mm x 6mm with 1/2” thread 2000.35.015 T/C, PT100 Isolated Temperature Transmitter. RFID Smart Phone Configurable
2000.00.029 PT100 Max 500 degC Temperature Sensor 300mm x 6mm with 1/2” thread
2000.00.146 PT100 Sensor 50mm x 6mm Max Temp 250 degC
2000.00.146 PT100 Sensor 150mm x 6mm Max Temp 250 degC
2000.00.342 PT100 Sensor 250mm x 6mm Max Temp 250 degC

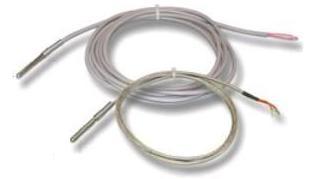

10K NTC Themristor temperature sensor. 6 x 50mm stainless steel tip with 1.5mm silicon cable. Max temp 100 DegC

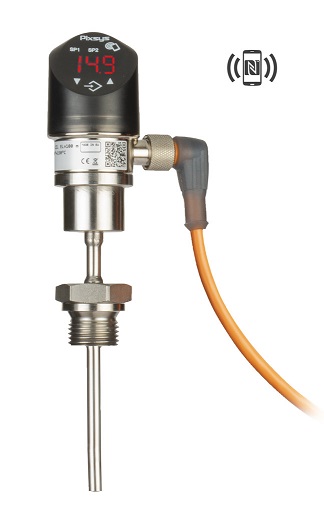

Transmitter 2000.035.010 temperature transmitter. Smartphone configurable via Android app or RFID PC programmer. 2,3 or 4 wire PT100 input -200 to 600 degC
Transmitter 2000.035.015 isolated universal temperature transmitter. Smartphone configurable via Android app or RFID PC programmer. Thermocouple or 2,3 or 4 wire PT100 input.
Android App for smartphones with NFC for fast programming of in head transmitters. Free from Google Play search Pixsys

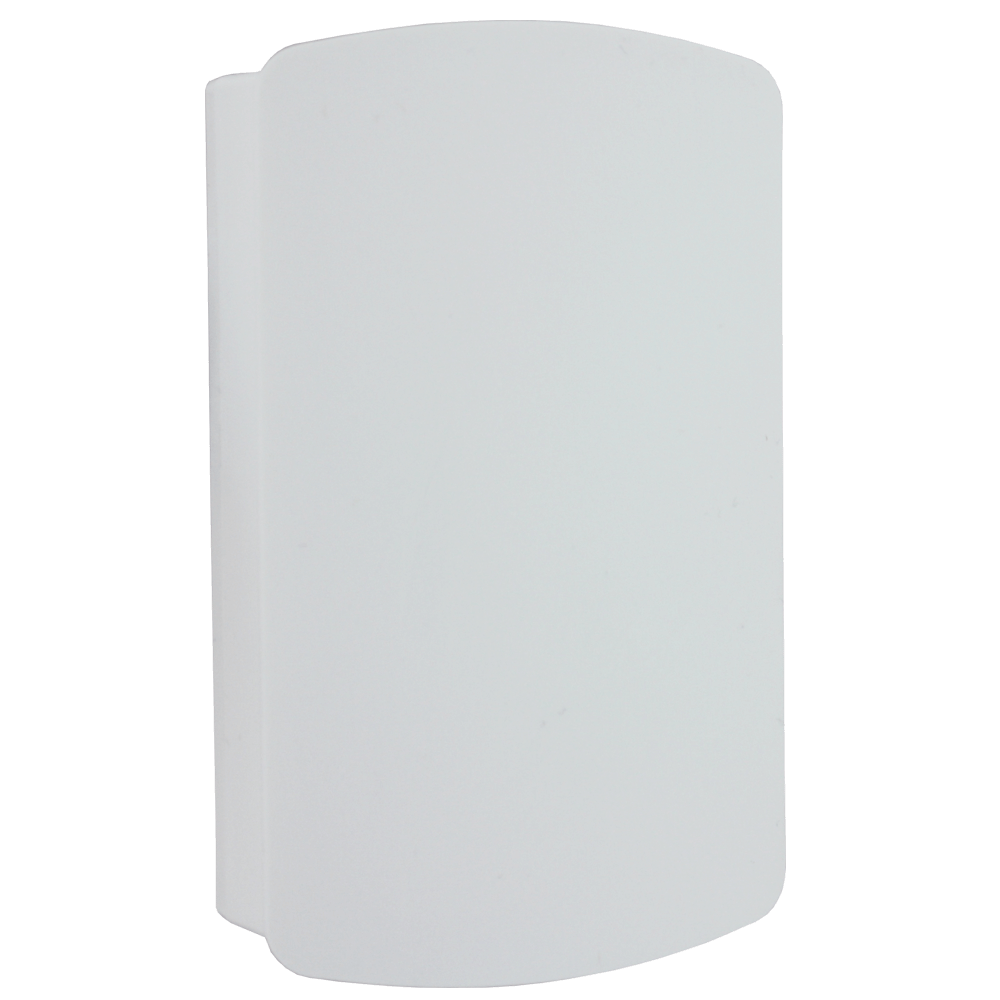

The SERIES TE-E/N Wall Mount Temperature Sensor provides a low cost temperature input for any building management system 10K NTC, PT100 & PT1000
Economy pressure transmitters 0-1 Bar absolute up to 400 Bar ranges, 12- 30 Vdc, Output 4-20mA. Stainless steel 304 construction. Accuracy +/-0,5% Ambient temperature -25-85°, Process connection 1/4" NPT
High accuracy 0.25% transmitters 0-1 Bar absolute up to 400 Bar ranges, 12-30 Vdc, Output 4-20mA. Stainless steel 304 construction. Accuracy +/-0,5% Ambient temperature -25-85°, Process connection 1/4" NPT

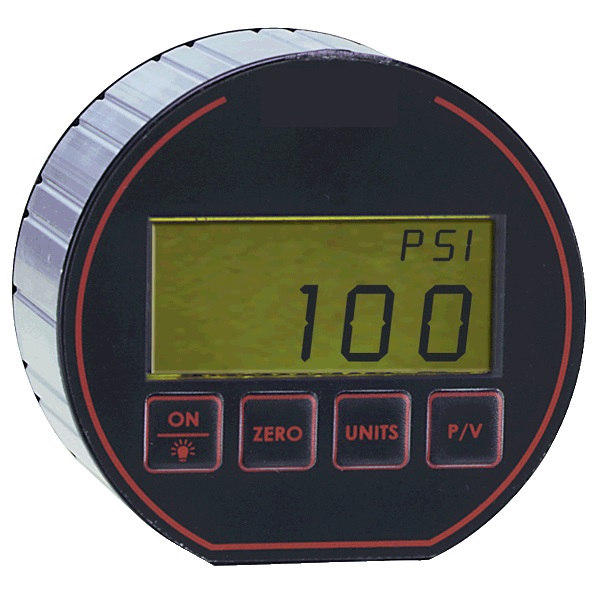

SERIES DPG Digital Pressure Gage, ranges up to 5000 PSI. The Series DPG has a high ±0.25% or ±0.5% full-scale accuracy. Pressure limit 7500 PSI for 5000 PSI 2x Range for < 1000 PSI, process connection is 1/4" Male NPT. Series DPG is battery powered and has an auto-shut off to conserve battery life. Battery life, on average, will last 2000 hours. A 4 button key pad allows easy access to features without the need to work through complex menus or difficult key combinations. These features include backlight, peak and valley, tare or auto zero and conversion of the pressure units.

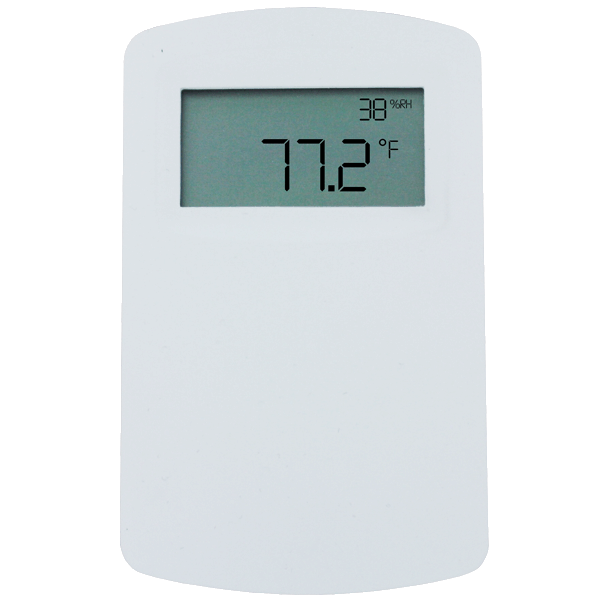

Relative Humidity Range:0 to 100% RH.Temperature Range:-40 to 140°F (-40 to 60°C) for thermistor and RTD sensors. -20 to 140°F (-28.9 to 60°C) for solid state band gap temperature sensors.Dew Point Temperature Range:-20 to 140°F (-28.9 to 60°C); 0 to 100°F (-17.8 to 37.8°C); 40 to 90°F (4.4 to 32.3°C); -4 to 140°F (-20 to 60°C) field selectable ranges.Accuracy:RH: Model RHP-2XXX ±2% 10-90% RH @ 25°C; Model RHP-3XXX ±3% 20- 80% RH @ 25°C; .4-20 mA Loop Powered Outputs:Power requirements: 10 to 35 VDC; Output signal: 4 to 20 mA, 2 channels for humidity/solid state temperature sensor models (loop powered on RH).

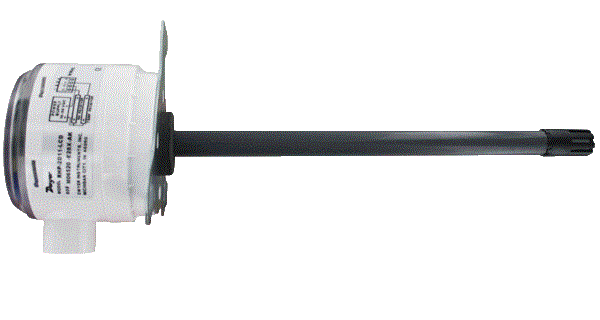

Duct mount sensor for measurement of relative humidity Range:0 to 100% RH. Temperature Range:-40 to 140°F (-40 to 60°C).Accuracy, RHP-2XXX ±2% 10-90% RH @ 25°C; RHP-3XXX ±3% 20-80% RH @ 25°C; Repeatability:±0.1% typical.Temperature Limits:-40 to 140°F (-40 to 60°C).Storage Temperature:-40 to 176°F (-40 to 80°C).Compensated Temperature Range:-4 to 140°F (-20 to 60°C).Power Requirements:4-20 mA Loop Powered Models: 10 to 35 VDC; 0-5/10V Output Models: 15 to 35 VDC or 15 to 29 VAC.Output Signal:4-20 mA Loop Powered Models: 4-20 mA;
