APM Digital Panel Meter for AMPS
APM-AMP-APN
The Trumeter APM-AMP-APN or APM-AMP-APO ammeter (With outputs) is one of the most visible, simple to use, programmable panel meter on the market. Providing you with a high level of accuracy and an immediate visual indication of your critical parameters via multi coloured back lighting. The APM-AMP-APN has been specifically designed for engineers requiring a more effective way of monitoring and displaying data. The Trumeter APM-AMP-APN is a cost effective alternative to the traditional moving coil and expensive digital panel meters. Trumeter APM series are revolutionising the future of panel meters
The APM-AMP-APN digital panel ammeter achieves an accuracy of 1% or better across the input range for precise control where accurate measurement is paramount. It has a direct input for measuring AC and DC currents up to 5A or, in conjunction with a Current transformer, measure AC current up to 1,000A. The APM-AMP-APO includes the addition of 2 outputs and either can be user configured for 4-20mA retransmission of input or 50 mA static switched for a threshold alarm.
APM-AMP-APO digital panel meters are suitable for many applications including:
– mains applications – generators and power perfomance monitoring – industrial applications – process monitoring – aviation industry applications
APM-AMP-APN Ammeter Application
AC Current Measurement

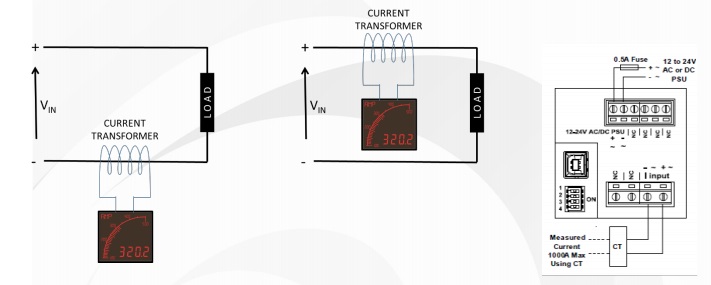

The APM-AMP-APN meter is connected to an external current transformer as shown above. The CT can be placed on either the high side or low side of the load.
In the APM Configurator application make sure that the external sensor is set to ‘CT’ and then enter the primary and secondary currents of the CT that you are using. The APM-AMP meter will then automatically scale its display accordingly
Physical Dimmension TRUAPM
Specification TRUAPM
INPUT VOLTAGE
Input range
APM-AMP 0 - 5A Max Using Shunt 1000A
Accuracy
APM-AMP-APO 1%
Display modes Peak or RMS
ENVIRONMENTAL
Temperature - operating -10 to +60 degC
Temperature - storage -40 to +70 degC
IP rating (from the front) IP65
POWER SUPPLY
Nominal Input (AC or DC) 12-24 VAC/VDC
DISPLAY
Number of digits 4
Digit height 12mm [0.47"]
Number of message characters 4
Backlight colours Red, Green, White
LCD display Positive or Negative
OPTIONAL OUTPUTS
Max voltage 24V
Max current 50mA
Analogue output 4-20mA
CERTIFICATION UL and cUL, CE, RCM
Software for TRUAPM Panel Meter
