ATR227 Temperature Controller
PID Controller with Analogue Inputs
ATR227 Process temperature controller 48 x 48mm, 2 setpoints, short depth. One user programmable analogue input for thermocouple, mA,mV, Volts and PT100 sensors/signals. 2 relays and 1 logic for SSR output. The wide ranging power supply 24-230Vac/Vdc does not require any jumpers setting. Control modes: On/Off, PID + Autotuning. Special functions for optimization of infra red heaters. Sealing IP65 with frontal gasket. Standard USB mini flash card to clone settings. Software application LABSOFTVIEW for Windows enables setting and monitoring of parameters on PC. CE, UL-CSA C-Tick approved

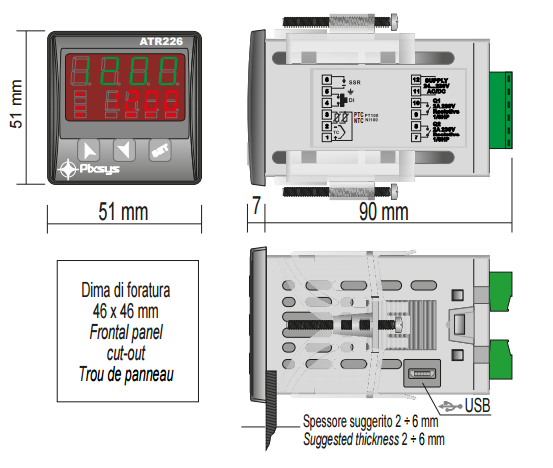

ATR227 Dimmensions

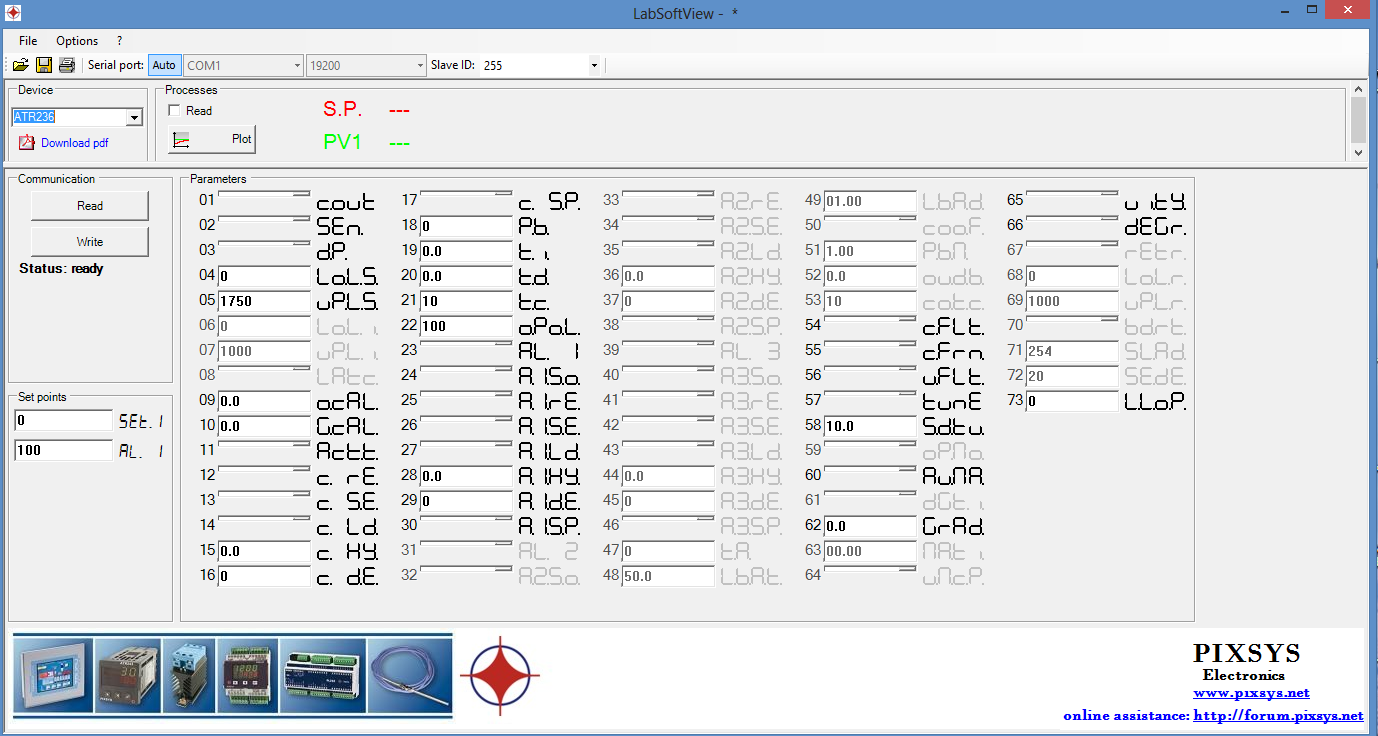

Labsoftview Configuration Software
SPECIFICATION
SIZE: 48 x 48 (frontal) x 85mm (depth)
SUPPLY: 24-230 Vac / Vdc +/- 15% 50/60Hz
CONSUMPTION: 3W
DISPLAY: dual 4 digits, 8 red LEDs, decimal point
OPERATING CONDITIONS: 0-45°C, 35..95rH%
INPUTS: 1 configurable Thermocouple K, J, S, R, N, T, PT100 (2ranges),
NI100, PT1000, PT500, PTC1K, NTC10K
mV, 0-10 Volt, (0) 4-20mA, 0-6K/0-150Kohm potentiometer
OUTPUTS
2 relays 5A resistive + 1 logic SSR 12V-30mA
DIGITAL INPUT: Tuning Start, Setpoint change, selection
Man/Auto, Alarm reset
cycle
CONTROL MODES: ON/OFF, P, PI, PID, Autotuning
ACCURACY: 0.5%+/-1digit for Tc/RTD
SAMPLING TIME: selectable (max 15ms)
SEALING: IP54 Frontal (IP65 with gasket), IP30 Box,
IP20 Terminal blocks
CONFIGURATION: Parameters protected by password, USB Flash & PC software
CERTIFICATIONS : CE, UL-CSA, C-tick
