URE72 Kiln Controller

URE72 15 Stage Temperature controller

The European manufactured URE72 Pottery Kiln temperature controller is a 15 stage kiln controller, mounted in an ABS enclosure fitted with cables and Clipsal 410 4 pin socket, so can be used on kilns using Harco controller with 4 pin type connection or similar

The URE72 Kiln controller can be configured for type K, R , N or S thermocouples. Programming of the temperature profile is relatively simple & start of the program is via a simple push button. A maximum of 8 ramps and 7 dwell or soak peroids can be set. The ramps can be set as rate ie degrees per hour. Or it can be set as time, ie set a SP and a time period to get there. The URE72 kiln controller also has RS485 serial communications as standard so you can connect to a PC. If a supervisory system needs to be connected or just simple data-logging is required, this is also possible.

DIMMENSIONS
Kiln Controller

URE72 Select Program and Start Guide

URE72 Edit Program - Easy Guide

Select program Start URE72 Kiln Controller

Edit programs with PC in URE72 Kiln Controller

Edit programs with Frontal Keypad in URE72 Kiln Controller

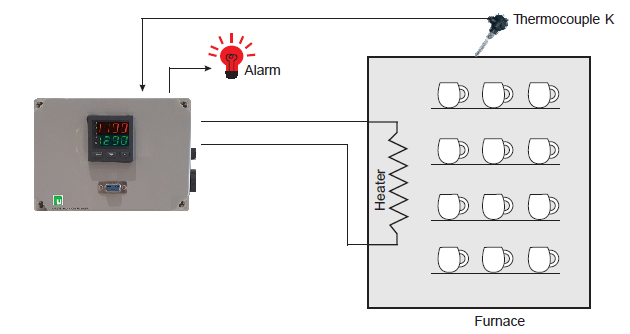

Kiln Control Application

Application Harco Kiln temperature Controller

URE72 Pottery Kiln Temperature Controller Specification

Readout field 2 x 4 digits digit height: 10 mm, red and green colours
Supply voltage 85 .. 253 V a.c./ d.c.
Temperature ambient: 0...23...50 DegC storage: -20...70 DegC
Relative humidity < 85% (without condensation of water vapour)
Electromagnetic compatibility noise immunity acc. to EN 61000-6-2 noise emissions acc. to EN 61000-6-4
Polluti on level 2
Installation category III
Maximal phase-to-earth operating voltage supply, output: 300 V input circuits: 50 V
Accuracy:
NiCr-NiAl (K) -100 - 1372 DegC 0.3%
PtRh10-Pt (S) 0 - 1767 DegC 0.5%
PtRh13-Pt (R) 0 - 1767 DegC 0.5%
PtRh30-PtRh6 (B) 200 - 1767 DegC 0.5%
NiCr-CuNi (E) -100 - 1000 DegC 0.3%
NiCrSi-NiSi (N) -100 - 1300 DegC 0.3%

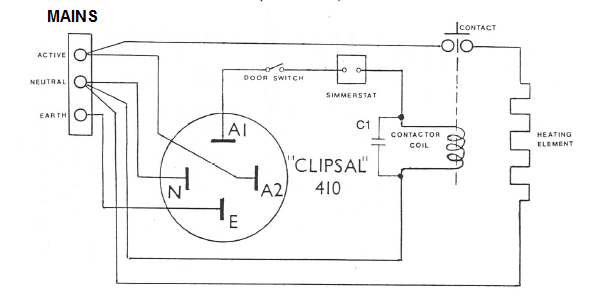

Typical Connections for Pottery Kiln

URE72 Pottery Kiln Controller Set Up Guide with Keypad

Modify program by PC or keypad

The Program can be modified by fontal keypad as all standard temperature controllers or via standard PC using optional PD Interface. This is an inexpensive super fast and easy method of changing programs and allows user to see the temperature profile. Using the PD Tool also allows a further 14 programs to be conveniently used, so the URE72 becomes a powerful 15 program x 15 stage kiln controller.

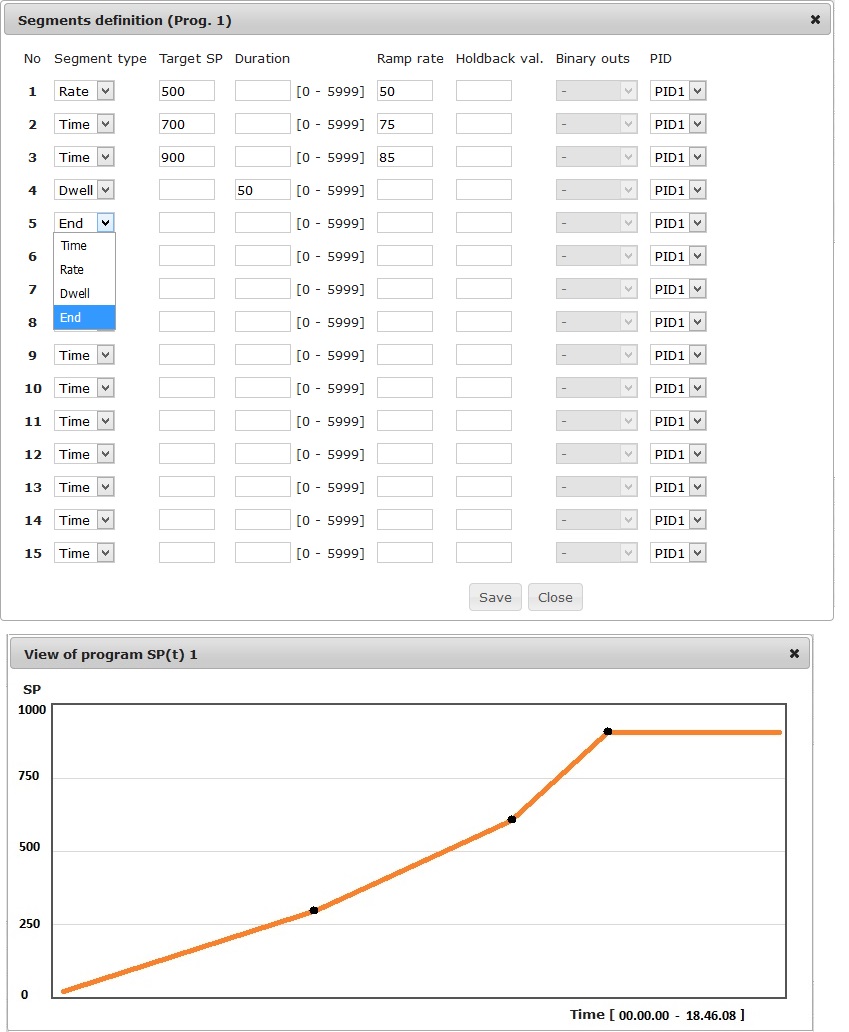

PC connection to Kiln temperature controller

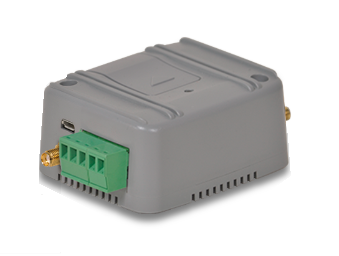

Modem for Kiln Controller

If you are interested in monitoring kiln firing progress from a remote location rather than hanging around the kiln all day and evening, we can provide inexpensive Modems which easily links to the URE72 kiln Controller. These accept a standard data sim card and can be set up allow interogation of kiln temperature and current status by mobile phone or desktop PC via the internet. Advanced features also allow set up to provide SMS text alerts should critical temperatures be reached.

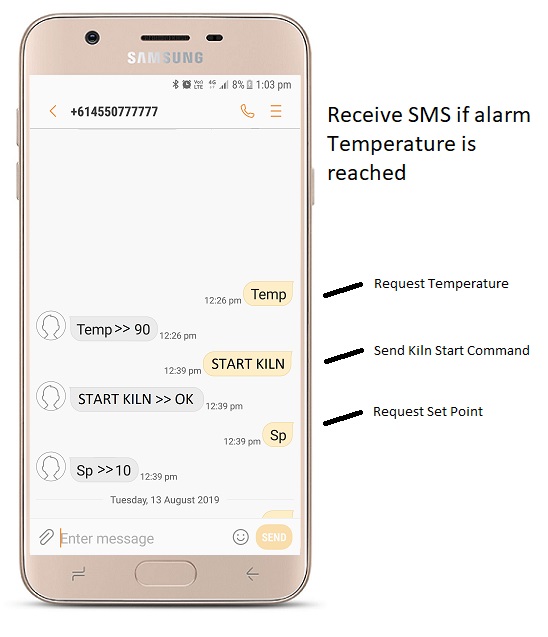

Use SMS to stop, start the kiln, read temperature, set point, stage number etc.
