Modbus , Pixsys, Canbus

MCM260

I/O expansion module for
PLC/HMI

These modules are conceived for acquisition and management of
remote I/O and for expansion of networks relying on PLCs, PCs or
HMIs. Multi-point RS485 for ModbusRTU or alterntively a CANbus
forCANopen allow the integration both with Pixsys devices as well
as instrumentation of other manufacturers (including EDS files for
CANbus).

Five different versions offer various combinations of both digital
and analogue I/O.

Ordering codes

MCM260-1AD	16 Digital outputs 700mA
MCM260-2AD	16 Digital outputs PNP
MCM260-3AD	8 Digital outputs 700mA + 8 Digital inputs PNP
MCM260-4AD	8 Relay outputs 5A + 8 Digital inputs PNP
MCM260-5AD	4 Universal analogue inputs + 2 Analogue outputs V/mA

Main features
Box	Standard DIN43880 90 x 71 x 58 (H) mm with DIN RAIL mounting fitting EN50022
Power supply	12...24Vac/Vdc ±15% 50/60 Hz
Consumption	2W ... 4W
Operating conditions	Temperature 0-45 °C, humidity 35..95 uR%
Material	Noryl V0
Weight	Approx. 255 gr.
Sealing	IP20 Box
Inputs
Analogue 16bit	4 Selectable for TC, K, J, S, R, PT100, PT500, PT1000, Ni100, PTC, NTC, 0/4..20 mA, 0/1..10 V, Potentiometer FS 6/160Kohm (code -5AD)
Analogue 10bit	2 Inputs 0...10Volt / 500 Hz (overlapped to 2 digital inputs on codes -2AD/-3AD/-4AD)
Digital	8 Inputs PNP (codes -3AD/-4AD) 16 inputs PNP (code -2AD)
Counters / Encoder	2 Input for counters of 2Khz or 1 input for incremental Encoder at 10Khz (overlapped to 2 digital inputs on codes -2AD/-3AD /-4AD)
Outputs
Digital	16 Digital 700mA (code -1AD), 8 Digital 700mA (code -3AD)
Analogue	2 selectable as 0...10Volt or 4...20mA 12 Bit (code -5AD)
Relays	8 relays 5A resistive charge (code -4AD)
Communication ports	1 serial RS485 on extractable terminal + 1 Bus CANopen with EDS file for net configuration
Software features
HMI - Operator interface	TD240 / TD320 / TD640 / TD800 / SCADA for control or supervision of iany ndustrial plants
Protocol for RS485	Modbus RTU Slave up to 57600 Baud

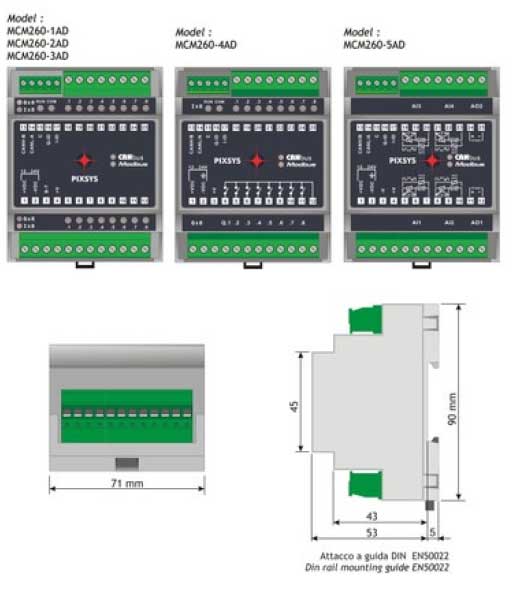

Size and installation
_last update 25/10/2011 - Modbus , Pixsys, Canbus
