S LINE HIGH PERFORMANCE SOLUTION IN A
COMPACT SIZE
|
 |
| High Accuracy |
Max error 0.05% |
| A/D resolution |
16 bit |
| Thermal Stability |
0,005%/°K |
| Input |
Current 4-20 mA |
| Power supply |
by the input loop (max 30 V) |
| Max Voltage drop |
7 V |
| Settings |
Front Key Buttons, protected by a password |
| Small dimension |
96x48x40 mm |
| Operating temperature |
-10..+65 °C |
| Special Version |
Available in IP66 housing too |
|
 |
|
|
S315

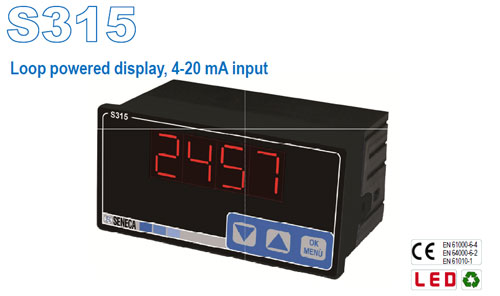

Loop Powered display,4-20 mA input
|
 |
ORDER CODE
Model No. S315 Loop powered display, 4..20mA input
|
|
| TECHNICAL SPECIFICATIONS |
GENERAL FEATURES
|
| Power supply |
By the input loop (max 30 V) |
| Voltage drop |
Max 7 V [6,2 V + (506 * 4-20 mA) |
| ADC resolution |
16 bit (40.000 points) |
| Memory |
EEPROM, 10 years |
|
DYSPLAING AND MEASURE
|
| Display |
LED, 4 digits |
| Front buttons |
3 (down, up, menù) |
| Accuracy |
0,05% |
| Thermal stability |
0,005%/°K |
| Linearity |
0,05% |
| Terminal blocks |
Screws: 2 ways (power supply |
| Electromagnetic interf. |
< 1% |
| Error warning |
Value > 3% of full scale or greater than 9999
Value < 3% of start scale or lower than -9999 |
|
INPUT
|
| Channel |
1 |
| Type and range |
Current (4-20 mA) |
|
|
THERMOMECHANICS FEATURES
|
| Operating temperature |
-10..+65°C |
| Storing temperature |
-30..+85°C |
| Humidity |
Min 30%, max 90% not condensing |
| Housing |
PPO auto extinguish, DIN 43700 |
| Protection degree |
IP65 |
| Terminal blocks |
Screws: 2 ways (power supply |
| Dimensions (wxhxd) |
96 x 48 x 40 mm |
| Hole dimension |
91x45 mm |
| Weight |
200 g |
|
SETTINGS AND NORMS
|
| Settings (menù buttons) |
Password, input type, start / full electric scale, start /full display scale, decimal point, filter level |
| Access protection |
Through password |
| Conformity |
CE |
| Norms |
EN 61000-6-4, EN 64000-6, EN 61010-1, EN 60742 |
|
|
|
| LAYOUT AND DIMENSION |

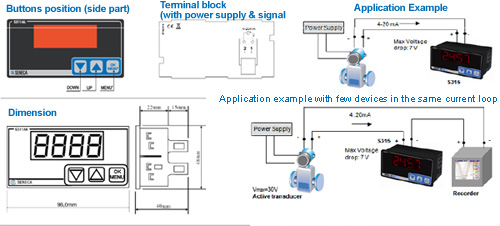

S315 is powered by an active loop which must supply a voltage value greater tha the maximum voltage drop (7v). the calculation has to consider the internal voltage drop of the transducer and the other devices connected into the loop,beside the loss tatio concerning the connection cables |
|
