Digital panel meters with Android smart phone configuration.

Pixsys STR  model digital panel meters are setting new standards in panel meter technology.

There are 3 models in the range.  The STR551 which is a universal analog input which includes inputs such as thermocouple, RTD, NTC thermistor, 4-20mA, 0-10V, mV and potentiometer.

The STR561 is a strain gauge input version which provides the bridge excitation & is used for weighing applications.

Both these models have a choice of numeric and  bargraph, numeric only or trend as primary display.  The display orientation can be vertical or horizontal this is programmed in the menu.

Hardware features such as 2 relay outputs, 2 digital inputs, 4-20mA re transmission, Modbus RTU are also standard.

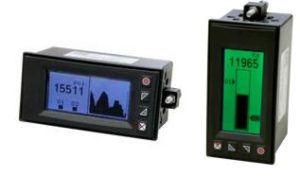

STR  panel meter

The last panel meter in the range is the Model STR571.  This is a Modbus RTU only digital panel meter.  It has 2 ports, one is a master and one is a slave.  Up to 8 registers can be managed via read or write and 1 to 4 can be displayed per page depending on how large you would like the digits to be.  The STR571 has 2 alarm relays which can be assigned to individual or all registers.  There is also a potentiometer input should the user require simple pot rotation set point adjustment, rather than set point entry via keypad

All STR panel meter  models have to unique feature of being smart phone programmable via NFC.  Using the MyPixsys app available from Google Play, simply touch the rear of the smart phone onto the bezel of the panel meter to read device parameters, edit then touch to download.  A very fast method which eliminates possibility for errors.

Supply voltage is a wide ranging 24 to 240 VAC/DC.
