Temperature Controller for Kiln

Our new URE72 temperature controller is a self contained 15 stage of up to 15 programs kiln controller fitted with a Clipsal 410 4 pin socket, so it can directly replace products such as the Harco controller and other similar devices.

Kiln Temperature Controller
Kiln Temperature Controller

The URE72 kiln controller can be set up by the frontal push buttons or PC software.  The PC software feature makes the URE72 controller stand out from the competition.  Using the software is simple and fast method of entering programs.  Using the PC software also makes it convenient to use the full program capacity of 15 programs x 15 stages, a temperature profile can also be graphed.

PC-connection-kiln-controller

kiln-temperature-profile



Once the program is entered simple push button activation will start the program, current set-point and temperature will be displayed on the 4 digit LED display until program end.





Smart Phone App available for Digital Panel Meters

Pixsys STR range of digital panel meters has the unique and extremely user friendly feature of being configurable by Android smartphone.

Download the free MyPixsys APP from Google Play.  Enable the NFC function of the phone then touch the rear of the phone against the digital panel meter bezel.  The APP will identify which panel meter model and load configuration parameters.  make any adjustments required to the panel meter settings then write down new parameters to the panel meter.  Error free configuration  changes in seconds.  No manuals menus, sub menus, passwords.

Smart Phone APP digital panel meter
Smart Phone APP digital panel meter

Traditional methods of configuration are still possible, by frontal push buttons, PC configuration & standard pre-loaded mini USB flashcard but Smartphone configuration sets a new standard in digital panel meter technology.



Digital panel meters with Android smart phone configuration.

Pixsys STR  model digital panel meters are setting new standards in panel meter technology.

There are 3 models in the range.  The STR551 which is a universal analog input which includes inputs such as thermocouple, RTD, NTC thermistor, 4-20mA, 0-10V, mV and potentiometer.

The STR561 is a strain gauge input version which provides the bridge excitation & is used for weighing applications.

Both these models have a choice of numeric and  bargraph, numeric only or trend as primary display.  The display orientation can be vertical or horizontal this is programmed in the menu.

Hardware features such as 2 relay outputs, 2 digital inputs, 4-20mA re transmission, Modbus RTU are also standard.

STR  panel meter

The last panel meter in the range is the Model STR571.  This is a Modbus RTU only digital panel meter.  It has 2 ports, one is a master and one is a slave.  Up to 8 registers can be managed via read or write and 1 to 4 can be displayed per page depending on how large you would like the digits to be.  The STR571 has 2 alarm relays which can be assigned to individual or all registers.  There is also a potentiometer input should the user require simple pot rotation set point adjustment, rather than set point entry via keypad

All STR panel meter  models have to unique feature of being smart phone programmable via NFC.  Using the MyPixsys app available from Google Play, simply touch the rear of the smart phone onto the bezel of the panel meter to read device parameters, edit then touch to download.  A very fast method which eliminates possibility for errors.

Supply voltage is a wide ranging 24 to 240 VAC/DC.

Blueline temperature controller sets new standards

Ucontrol Pty Ltd are pleased to announce the launch of the new Blueline temperature controller and process controller range from Pixsys.

The Blue line range is a 48 x 48 DIN temperature controller which provides a number of innovative features and advanced functions which is unique for a controller in this low price bracket.

Set up of the controller can be performed in 4 ways.  It can be done by the frontal keypad via the configuration menu which is simple to interpret & displayed in  English abbreviated prompts.

temperature-controller-Modbus
The quickest and most convenient method is by Android smart phone utilizing the Pixsys App available free of charge from Google play.  The connection is wireless via NFC, simply touch the controller front bezel with back of the phone to read, write or clone the set up.

PC Connection via mini USB is also available using free labsoftview software.  The USB port can also accept a mini USB flash card where settings can be stored and downloaded to the controller.

Helpful  for both for installation engineer and operator include the new scrolling help features.

As standard the Blueline temperature controller accepts universal inputs which include 4-20mA, 0-10V, R,S,T,N,J & K type thermocouple, PT100, PT1000, mV and potentiometer inputs.  If using 4-20mA loops the input can be active or passive and powered by the on board transmitter power supply.

Even in the most basic model, most of the common outputs are supported in one part number such as 0-10V, 4-20mA, relay, SSR & even servo valve drive for modulating motors.

This is in addition to standard features such as multiple relay alarms outputs, digital inputs & wide ranging power supply 24-240 VAC/DC.

4-20mA temperature controller

Optional Modbus RTU via the RS485 port is available in the 244-23ABC-T temperature controller.  A second analogue input, second PID loop and second analogue output are available allowing for advanced features such as dual loop PID control, cascade loop control, remote setpoint input, output & ratio control.

New Budget Priced Digital Panel Meter

The NEW N24 digital panel meter is designed for measurement of d.c. voltage or current,  temperature sensors through Pt100 resistance devices, type J, K thermocouples, a.c. voltage and current.
The N24 has a96 x 48 DIN impact resistant moulded bezel which is rated to IP65, LED digit height is a large 20 mm digit making viewing distance possible from up to 10 metres
The input type is fixed, but parameters programmable by PC software using PD14 programmer are:
decimal point selection, measurement averaging time,  input scale to display range, automatic or manual compensation: cold juncti on
temperature for measurement with thermocouples
or wire resistance for measurement with Pt100 (N24T).

Available 230V AC or 24VDC with 24V transmitter power supply.

N24-lumel-digital-panel-meter

Typical applications

N24-Panel-meter-example



Digital Panel Meter Solutions

Ucontrol Pty Ltd Australia now offer a comprehensive range of digital panel meters to suit many applications.

For process control there is our loop powered panel meter S315 which was one of the first digital panel meter to utilize high brightness LED for low power instruments.  This product boasts simple user scaling and configuration & is packaged in an IP65 panel mount enclosure.

S311AK

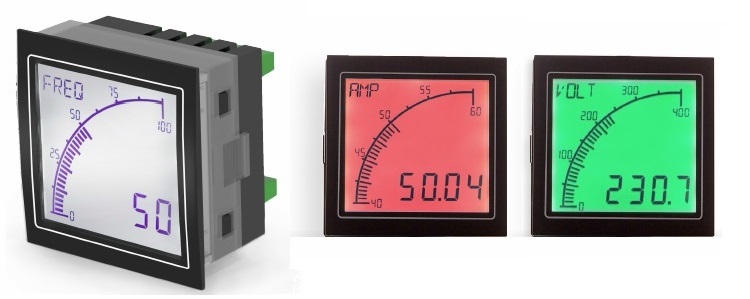

Then for process and energy applications we have the TRUAPM range of panel meters.  these items offer very attractive visual displays with multicolored back lighting that can be changed on threshold.  90 degree digital moving scale 4-20 mA and digital outputs.  Standard ranges and configuration can be set via dip switches of the unit can be fully customized by the free configuration software.  the range covers process signals such as 4-20mA 0-10V & also electrical supply inputs including up to 600 volts, 5A current, frequency, mV from current shunts & the new current transformer panel meter.

proc-apm-digital-panel-meter

The flagship of the range is the STR551 digital panel meter.  This product designed for the process industry with 4-20mA, 0-10V, thermocouple, PT100 & many other input signal.  Displays include large numeric,  bar-graph, trends with data logging.  Modbus RTU and isolated re-transmission output are standard & this is the worlds first digital panel meter capable of being programmed via an Android smart phone using the free application from Google Play.

Panel meter

Low cost, high functionality, quality build temperature controller ATR226

ATR226 is the newest temperature controller in the ATR family.  The approach to design and production for this model was incorporate all the required features into one part number and mass  produce hence keep the sale price as low as possible.

ATR226-temperature-controller-dimmensions

This was achieved and the ATR226 packs in the following features. Programmable input for thermocouple, PT100, PT1000 & NTC thermistors.  Two relay outputs and one logic output for solid state relay.  PID, on/off algorithm with auto-tuning and soft start. Multiple alarm strategies & a digital input for several functions including manual alarm reset making the ATR226 an ideal solution for over-temperature applications.

Configuration by Labsoftview PC based program software, mini USB flash card or keypad.  Wide ranging 24 to 240V AC/DC supply with no need to change links or jumpers.  IP65 protection with impact resistant bezel and neoprene click action push buttons.  Also a shorter case depth of 90mm

atr226-temperature-controller-proghram-software

Further information is available from  https://www.ucontrol.com.au/pid-temperature-controllers.html



STR571 Modbus Remote Display for digital panel meter with serial communications

The NEW STR571 allows remote display & parameter modification of up to eight STR551 digital panel meter via Modbus communications or any slave device which has Modbus RTU.  In addition the STR571 has a slave port it self which can be read by a master.  So the STR571 is a useful product to use an inexpensive local interface.

The display format can be 1,2 3 or 4 variables per page.  The fewer variables per page the larger the digits.  Descriptions and engineering units of your choice are programmable on the clear OLED display.  Data can be read and re-scaled and assigned to either of the 2 on board mechanical relays.

str5712

Also reading of numeric value can flag different messages via the enumeration feature.

There is also a potentiometer input which can be used for easy adjustment of one of the variables.  The supply is a wide ranging 24-240V AC/DC and configuration is possible via Android smartphone in addition to as standard PC.

str571

DIN rail timer with advantage digital display

7954 Industrial Multi-function Process Timer

The new 7954 timer from Ucontrol Pty Ltd offers the advantage of dual digital display for preset and actual time.
Rather than guesswork setting the preset with a pot, a precise digital value can be entered and time remaining can be viewed during operation.  Key-lock feature means settings cannot be tampered with for 100% reliable operation.
Modes: On Delay, Cyclic Off/On, Cyclic On/Off, Signal Off Delay, Signal Off/On, Signal On/Off, One Shot, Interval
Time Range: 0.1 Sec to 999 Hours
Voltage: 24 – 240 VAC/DC
Output: 8A C/O relay
Warranty: Manufacturer 3 years

7954 timer

ATR243 temperature controller coming soon with smart phone configuration

The popularity of the  ATR243 temperature controller has been unparalleled.  Due to combination of low price and flexible features.  One of the first temperature controllers that offered wide ranging 24-240V AC/DC supply.  Memory card & PC configuration.  Universal inputs such as mV, volts, 4-20mA, thermocouples and RTD sensors & outputs such as relay, 4-20mA, 0-10V, servo drive control, all user configurable & in a budget priced instrument.  Software enhancements which allow two stage profile control for kilns or soft start and comprehensive alarm strategies.

ATR243 Temperature controls

A version of ATR243 will be available soon with smart phone configuration using NFC function.  The app will be downloaded from google play.  The configuration file can be loaded without power to the controller as per all the other devices in the Pixsys range with this functionality, just by placing the phone near the front of the bezel.
