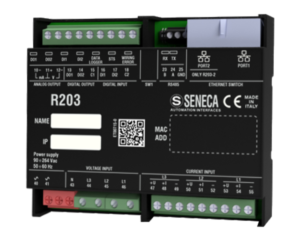

The NEW R203 is a flexible energy power meter with universal input, capable of handling a wide range of current measurement inputs. It can handle inputs from current transformers, direct voltages, and Rogowski sensors with voltage output up to 333 mV. This instrument offers several insertion modes, including single-phase and three-phase 3/4-wire types, and is compatible with the Ethernet/IP protocol, OPC UA, Profinet and Ethernet IP
Available with a 24 VDC or 100-240 VAC power supply, it features a compact design with a depth of only 32 mm, allowing a daisy-chain connection with automatic fault bypass protection. The R203 power meter can provide voltage (0-10Vdc) and current (0/4..20mA) output signals. It also offers advanced functionality for measuring harmonics up to the 55th order for a better understanding of power quality.
DATALOGGER ENERGY COUNTER R203-(X) With support for MQTT, HTTP, and FTP protocols for data transmission, the R203 and R204 operate as data loggers (up to 30 variables per tag and approximately 55,296 samples) and event loggers with recording of up to 32,768 samples. The values acquired by the data logger can be sent directly to the cloud using the MQTT(s), Http(s), or FTP protocols. Transmission via MQTT also includes timestamps and thresholds. For more technical information visit: https://www.ucontrol.com.au/R203-Ethernet-Power-Meter.html
